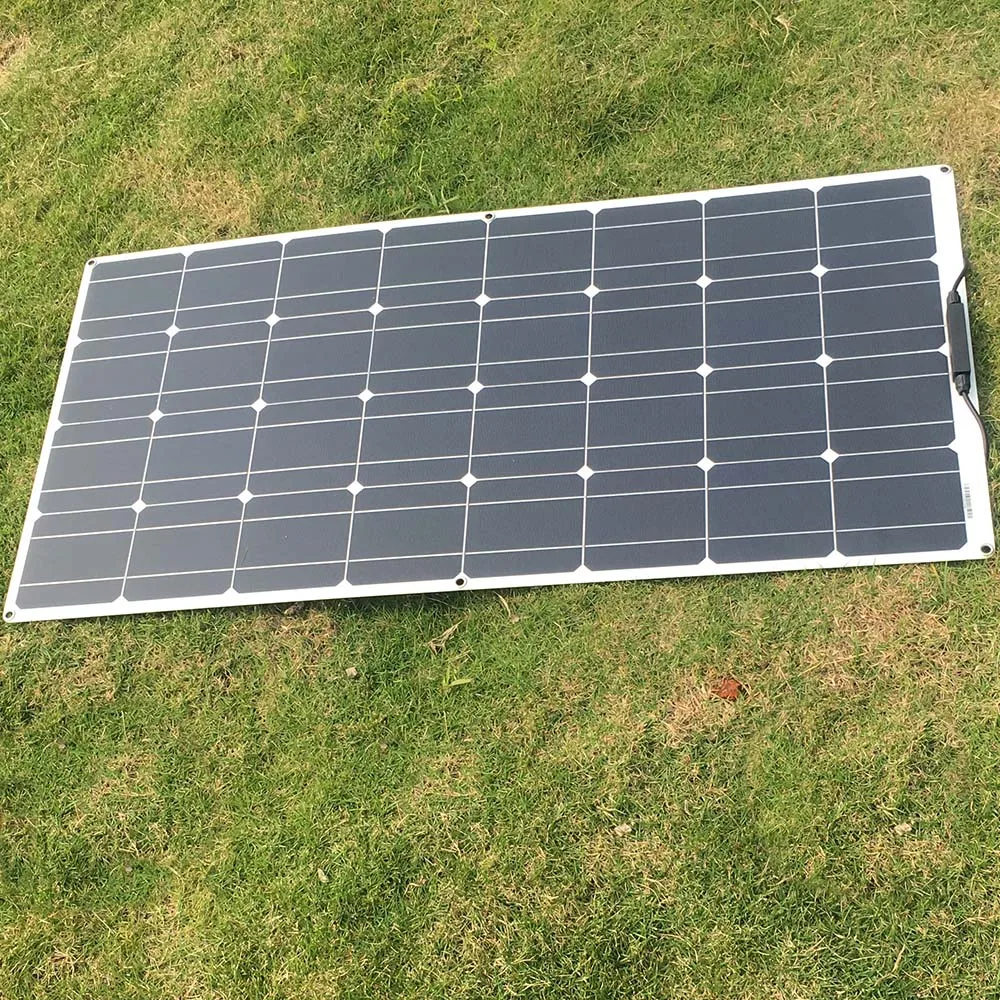

100 watt 5pcs off grid flexible PET semi solar panel kits 500w solar energy system panel solar for outdoor camping rv yacht

500w solar panel kit packing list

* 5 PCS 100W flexible solar panel

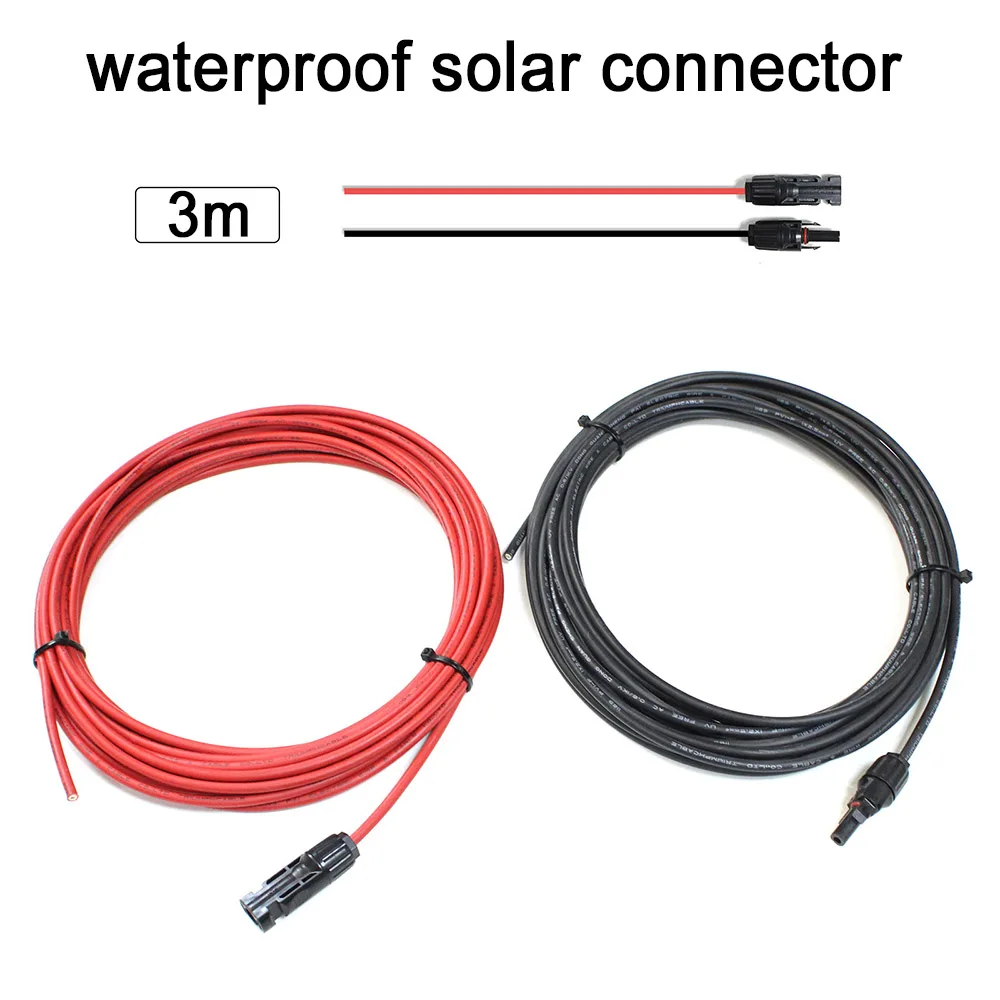

* 3m cable with solar connector

* 1m cable with battery clips

* 1 user manual

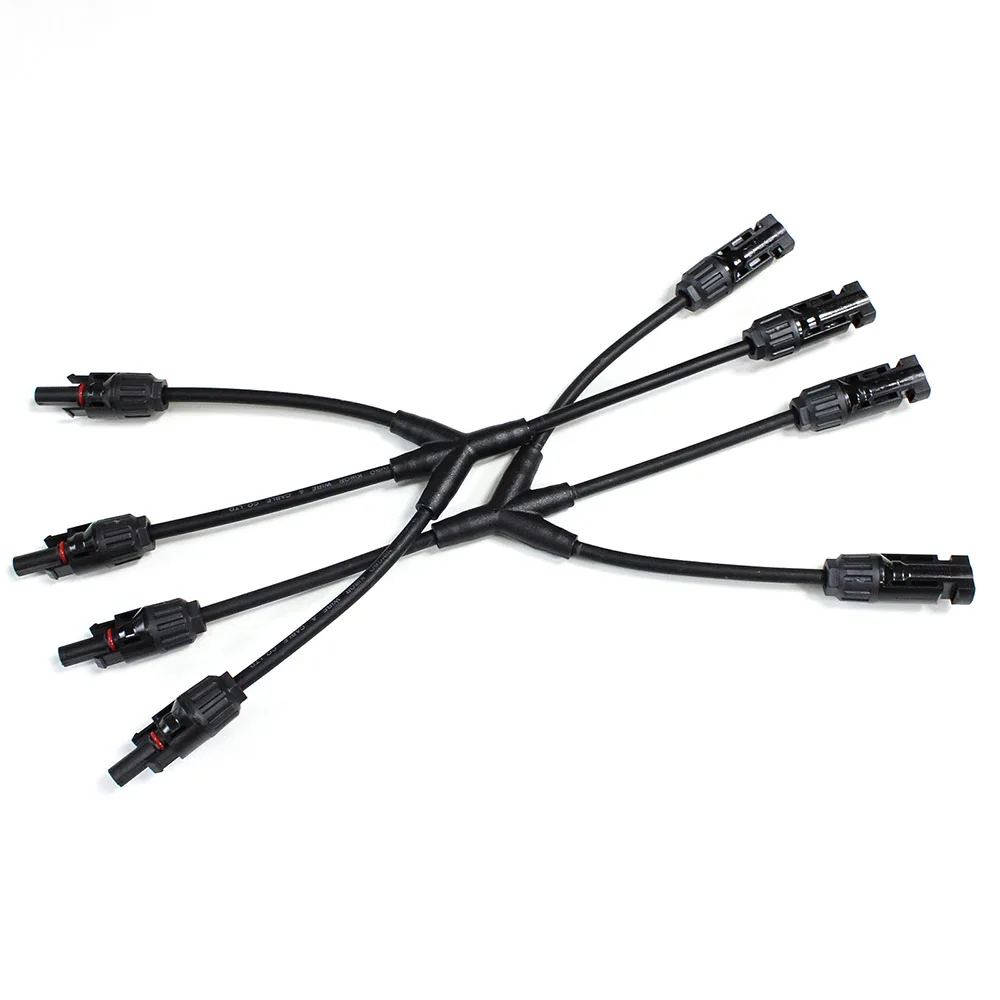

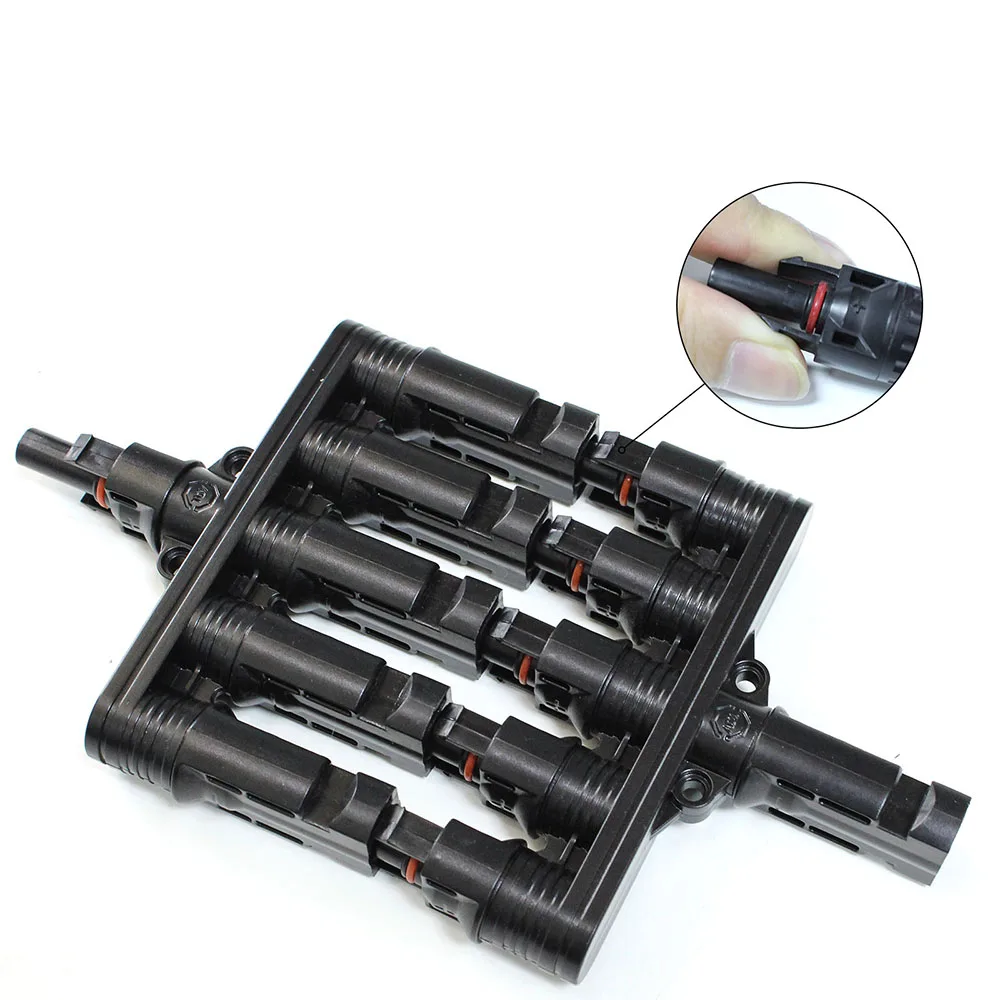

* 1pair 5 in 1 solar adapter

* 1 pcs 12v/24v 40A solar controller

* 3 PCS 100W flexible solar panel

* 3m cable with solar connector

* 1m cable with battery clips

* 1 user manual

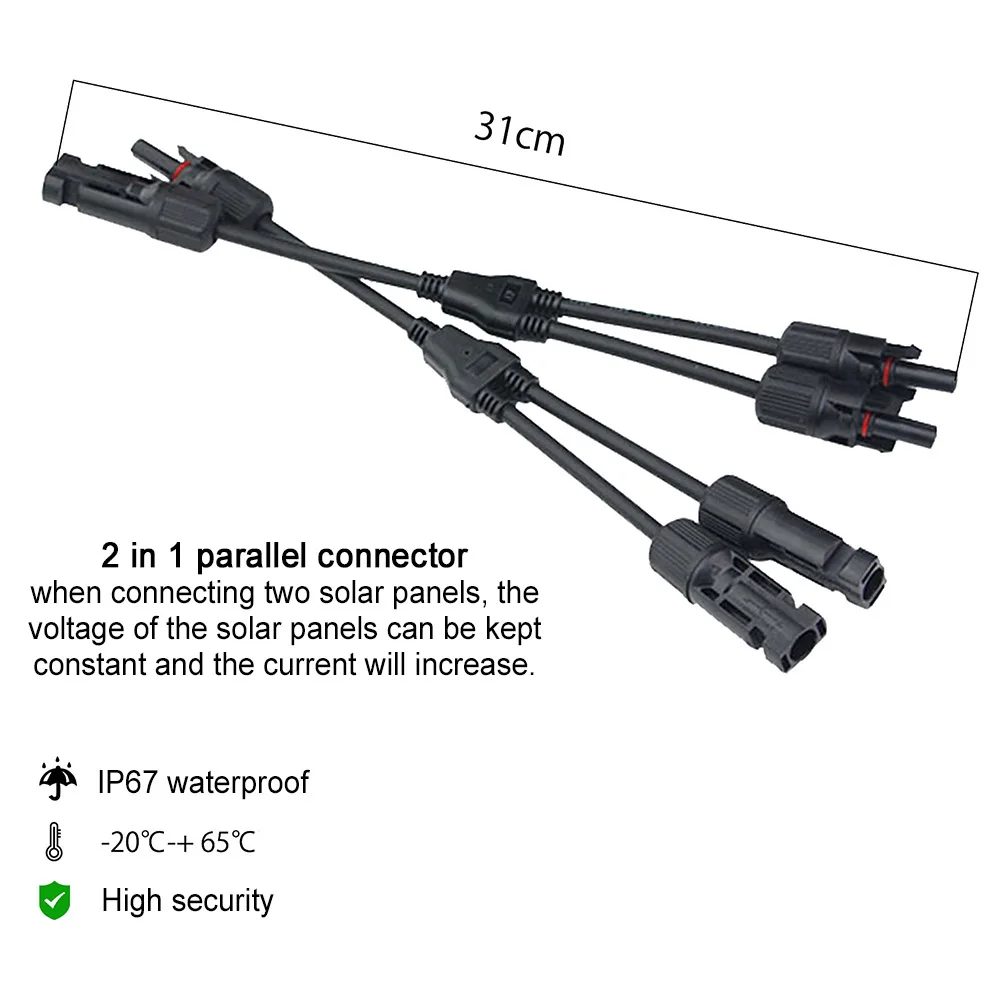

* 1pair 3 in 1 solar adapter

* 1 pcs 12v/24v 30A solar controller

200w solar panel kit packing list

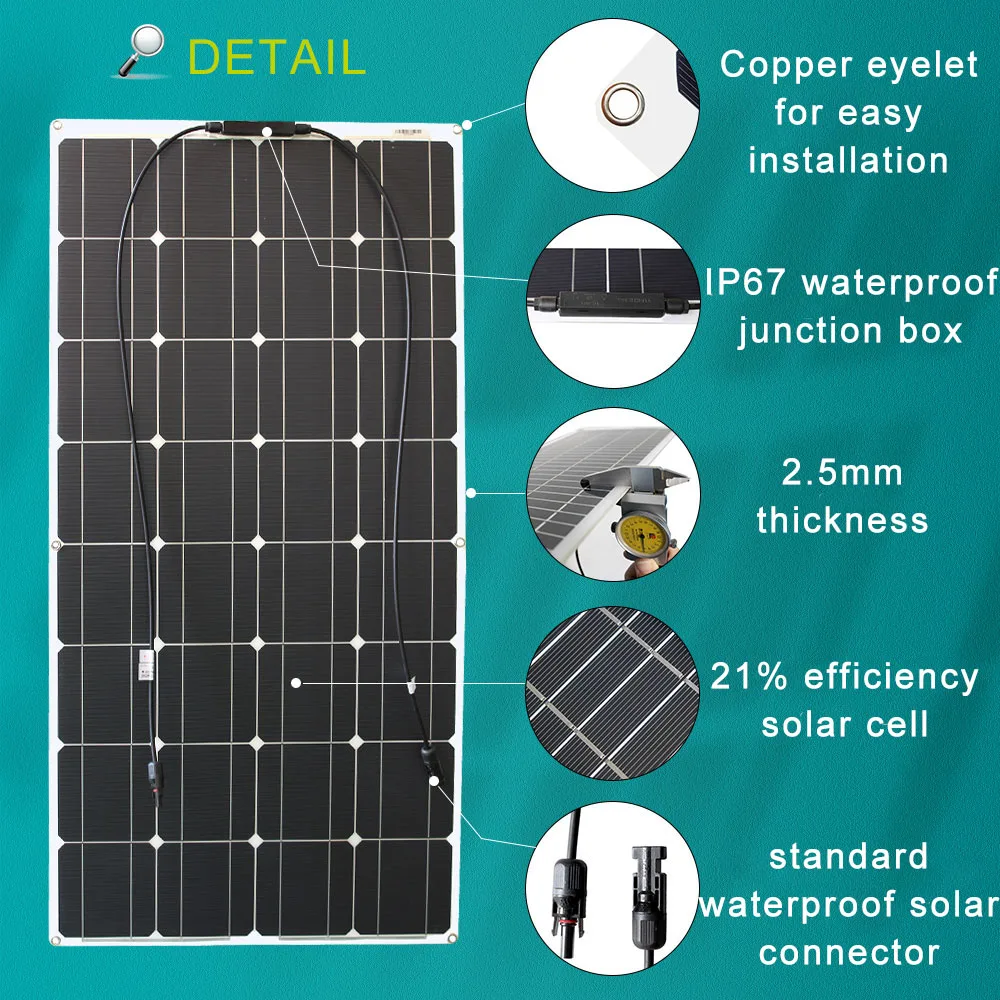

Advantages

Super Lightweight: With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze.

High Efficient: High efficiency solar cell: Monocrystalline 21%.

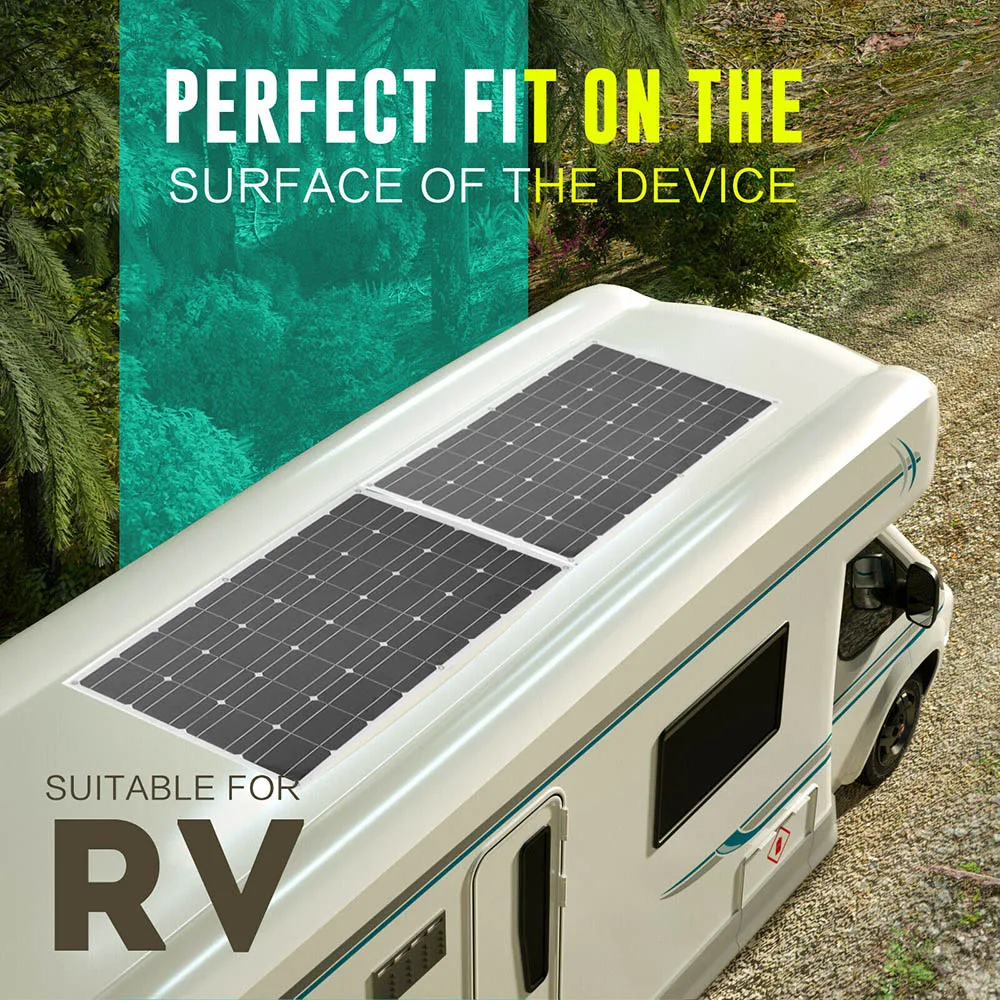

Extremely Flexible: This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.

Super Thin: Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

Protection: Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.

Highly Durable: Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.

Easy to install: Metal holes in the corners of the product for fixing screws and mounting.

Anti-reflective PET to absorb more sunlight keeping higher output.

0.5mm EVA keep the solar panel more durable.

21% high conversion efficiency solar cell.

TPT to keep the solar panel lifetime more than 10 years.

Electrical Characteristics

Max Power                             100W

Max Power voltage                16V

Max Power Current                6.25A

Open Circuit Voltage              19.2V

Short Circuit Current              6.68A

Maximum System Voltage 600V

Number of cells in Series 32

Cell size                                 125X125mm

Max Power tolerance         ±3%

Thermal Characteristics

Temperature coefficient of Pmax -0.38%/℃

Temperature coefficient of Voc -60.5mV/℃

Temperature coefficient of Isc 2.2mA/℃

NOTC 47℃+/-2℃

Operating Temperature -20℃ – +65℃

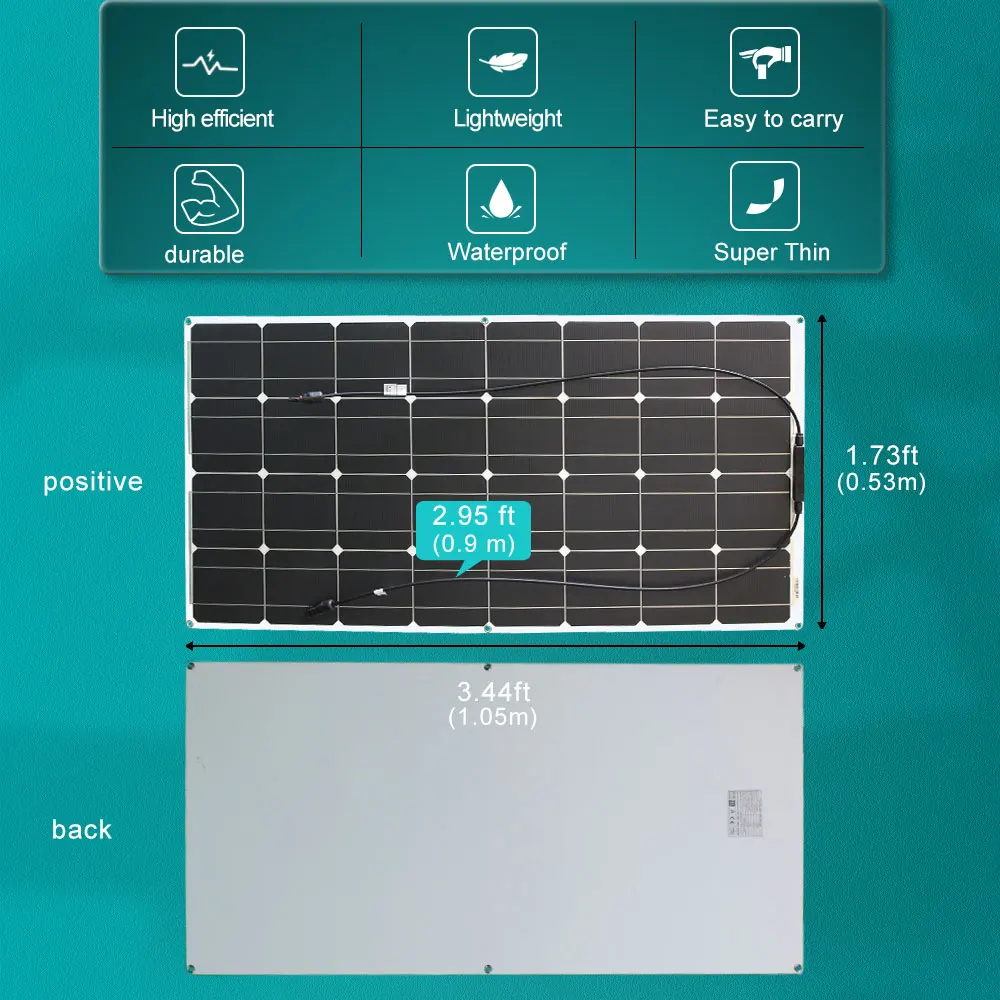

Mechanical Characteristics

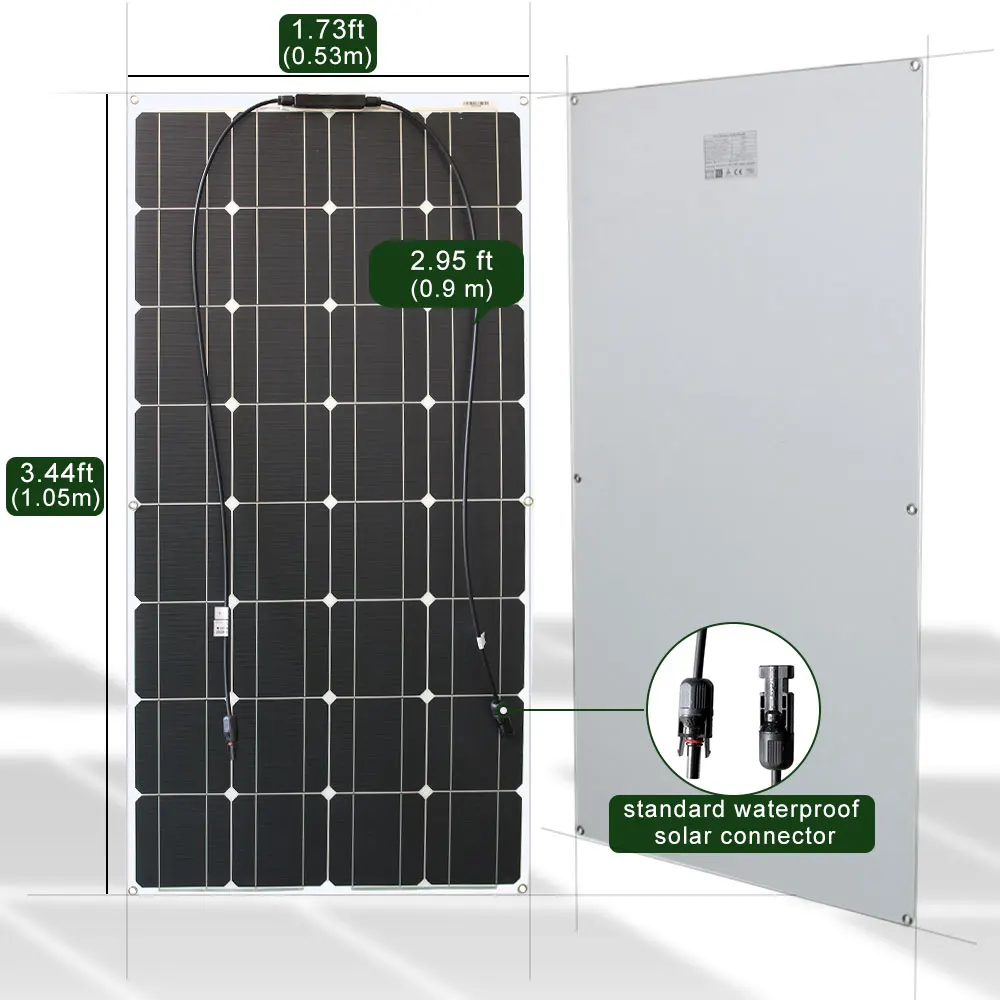

Dimension 1050X530X2.5mm

Weight 1.9kg(±0.1kg)

Cable 0.9 meter 2X2.5mm

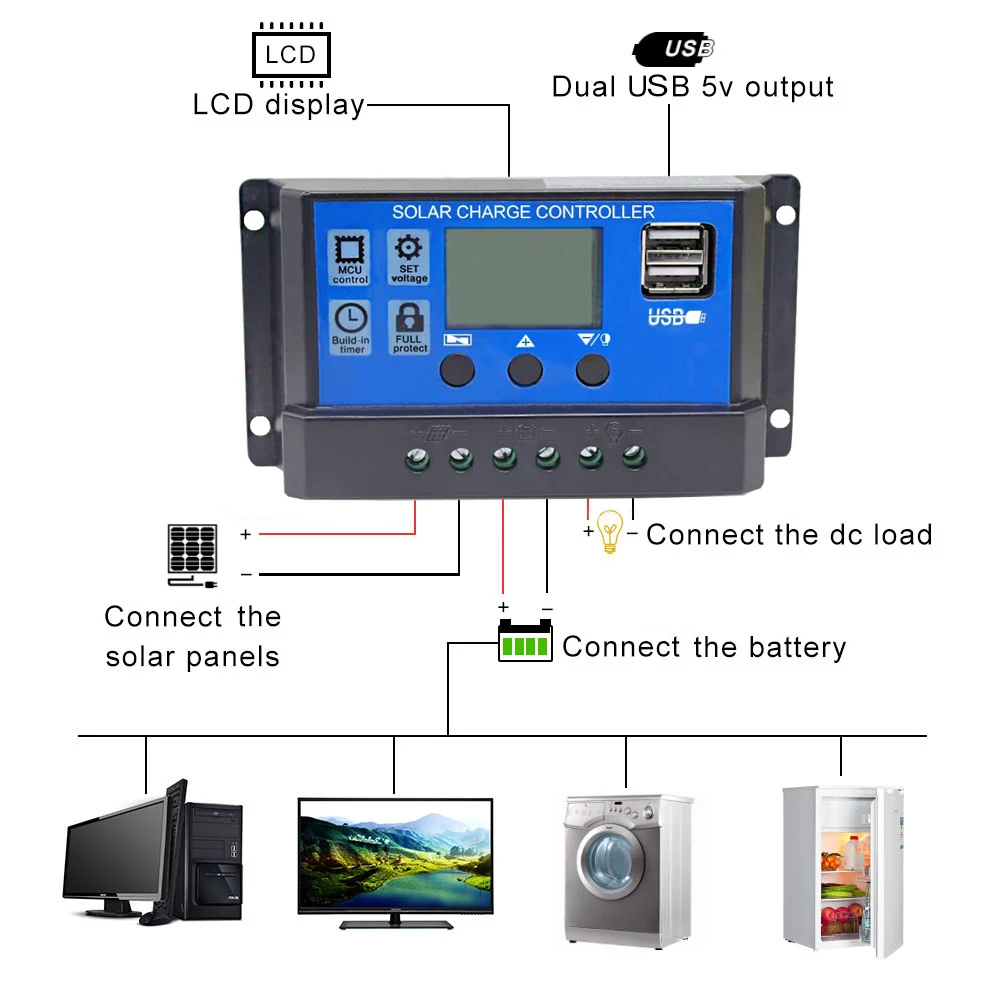

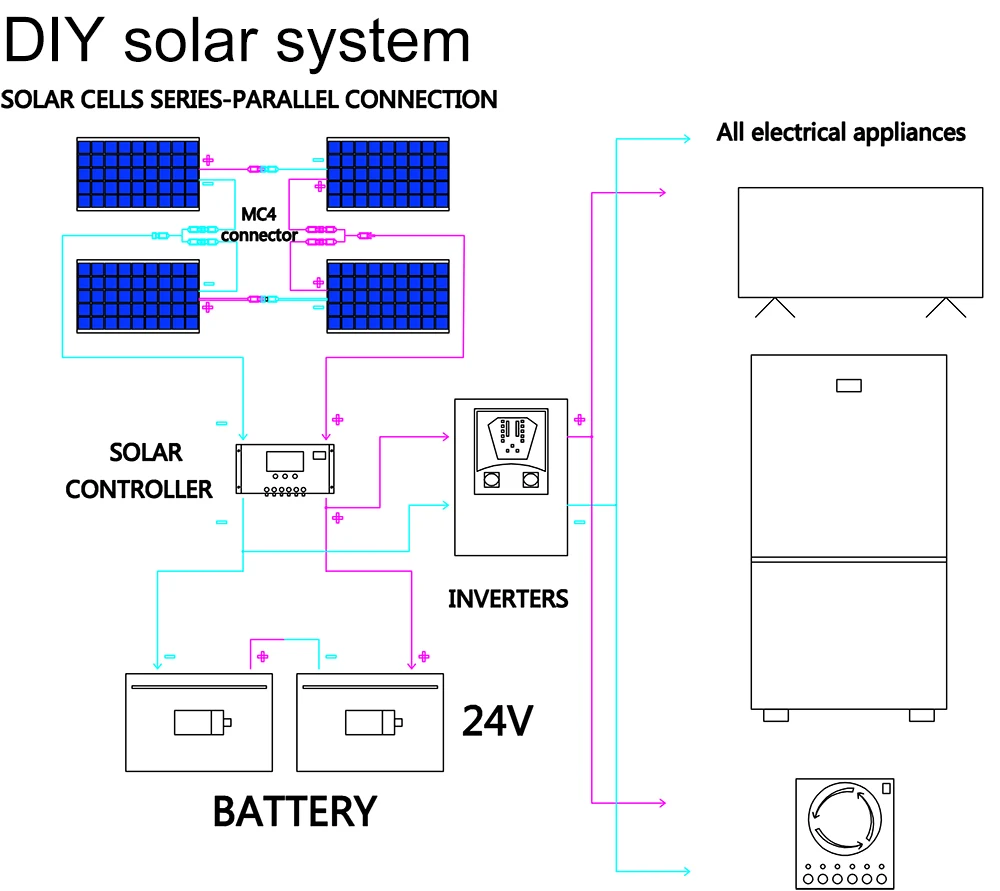

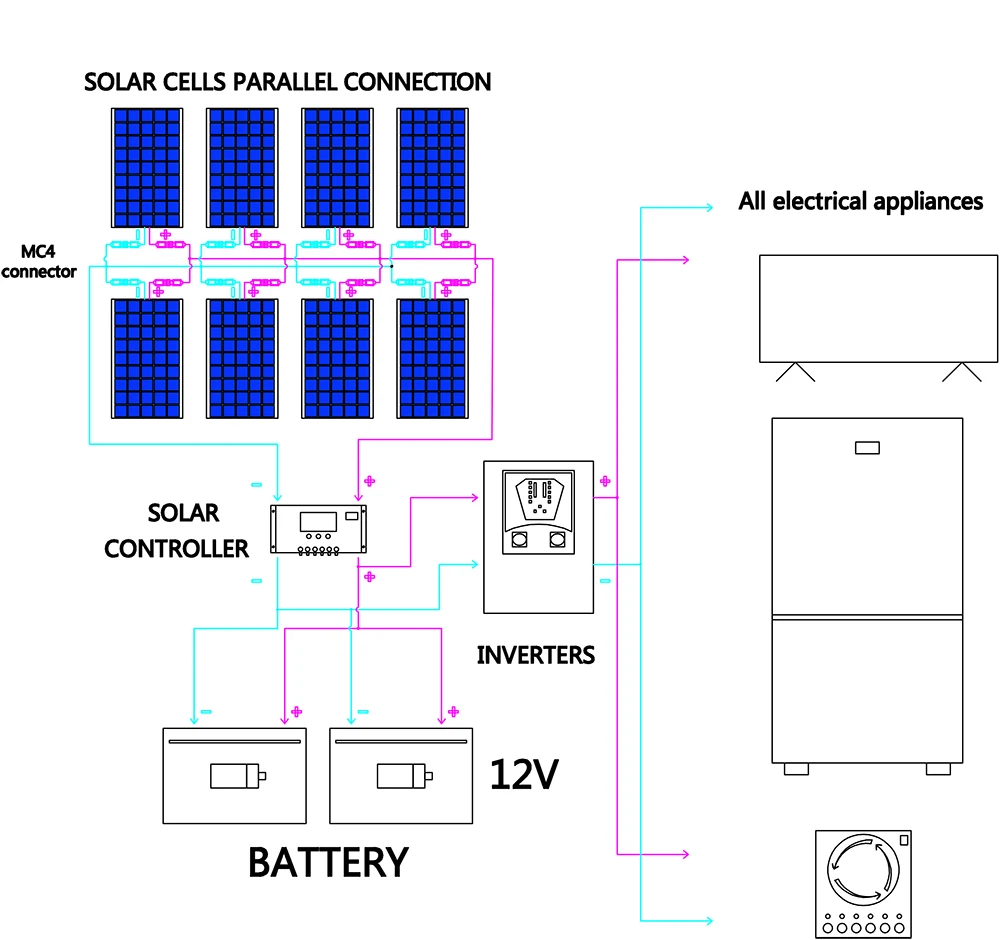

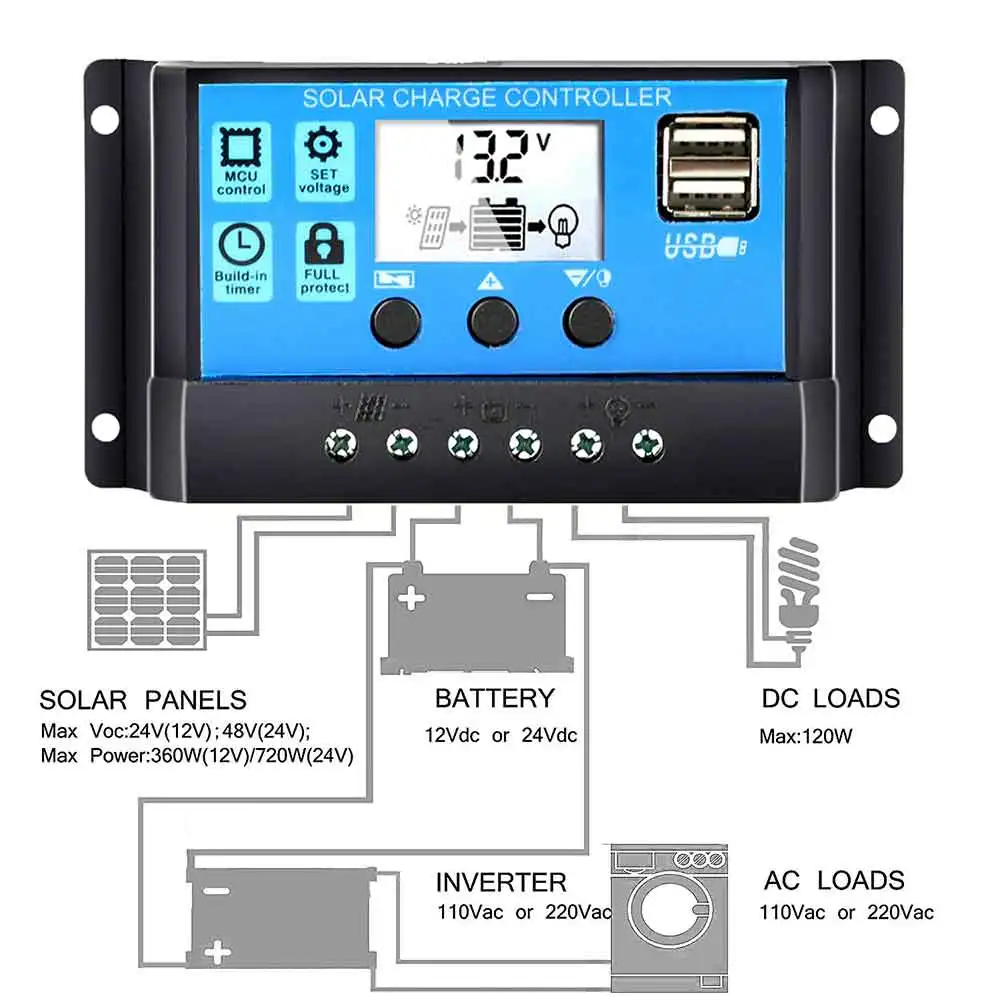

System Connection

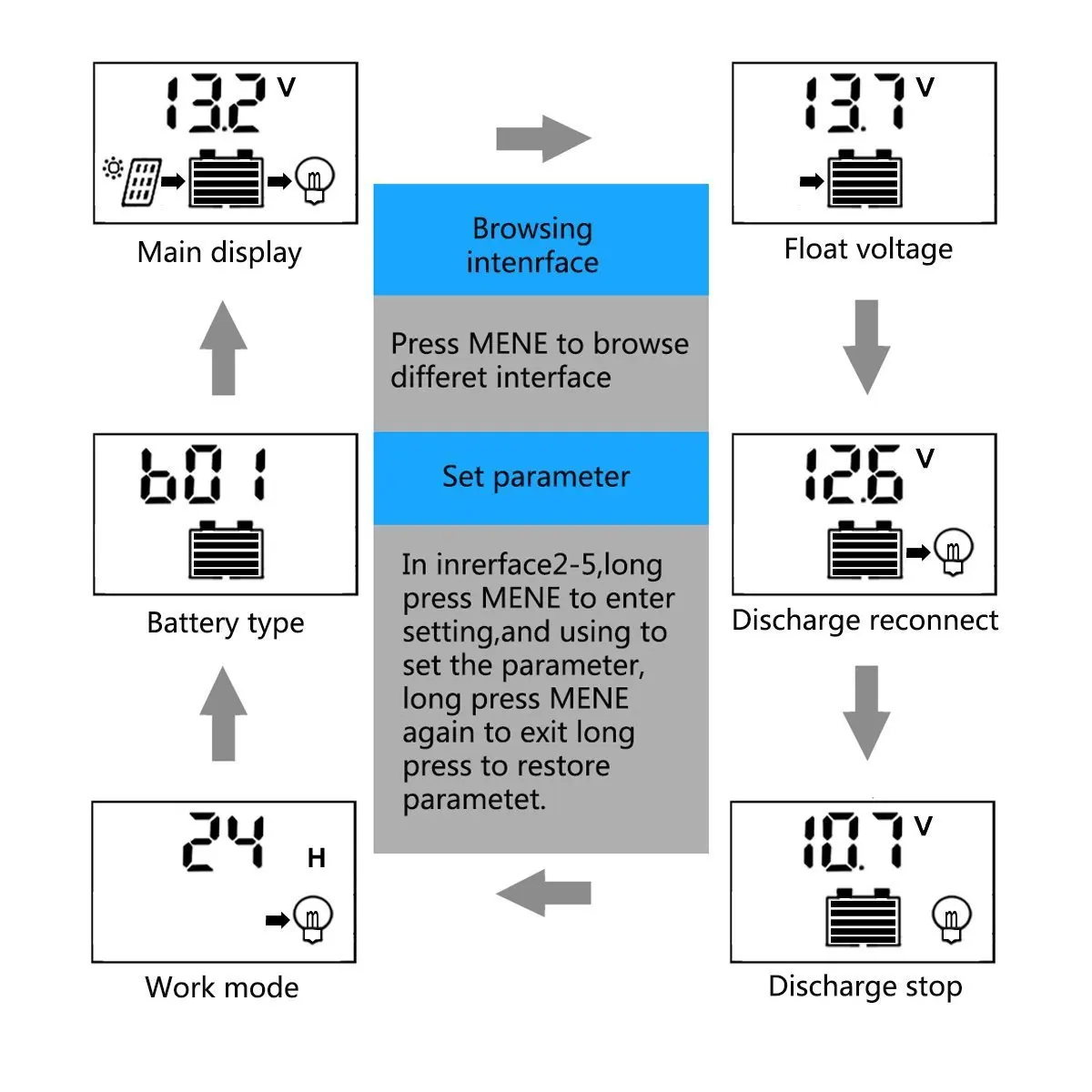

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.

Safety Instructions

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

NOTE

The controller is only suitable for lead-acid batteries, if the battery is of other types, please consult us。

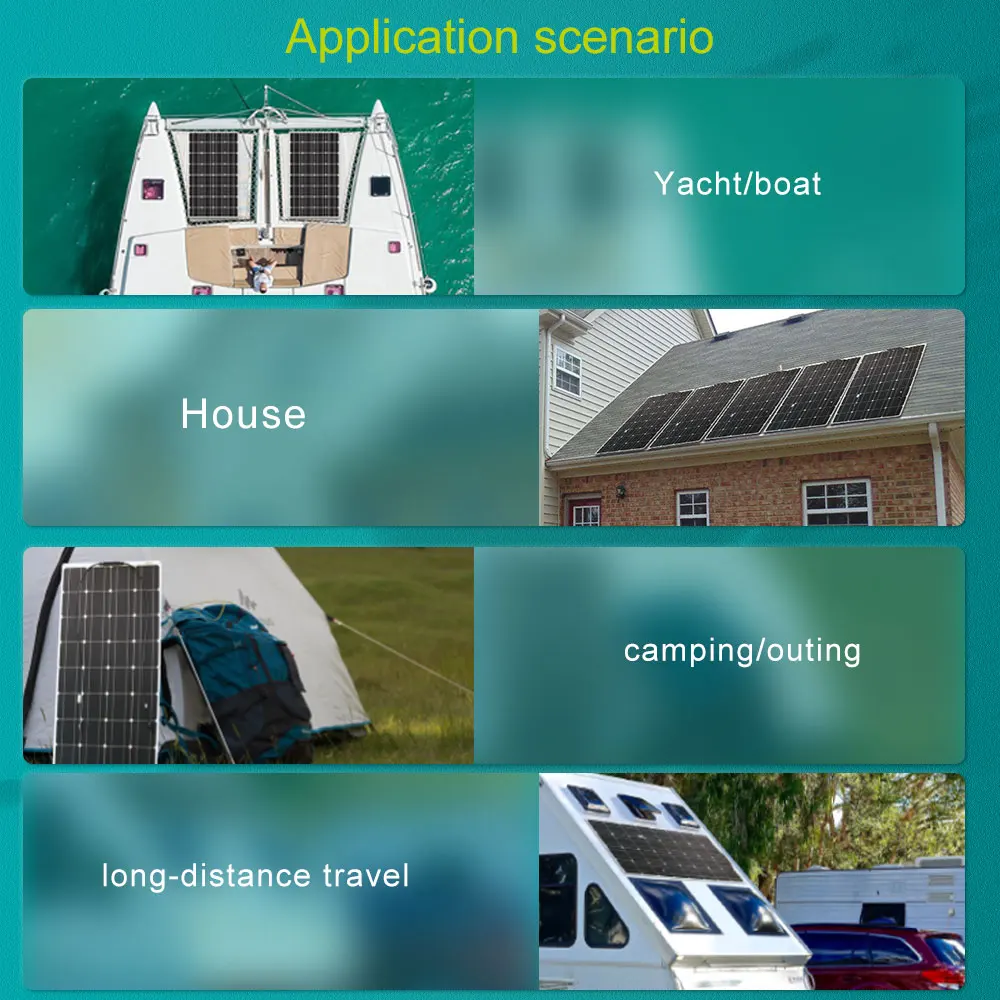

Widely applications

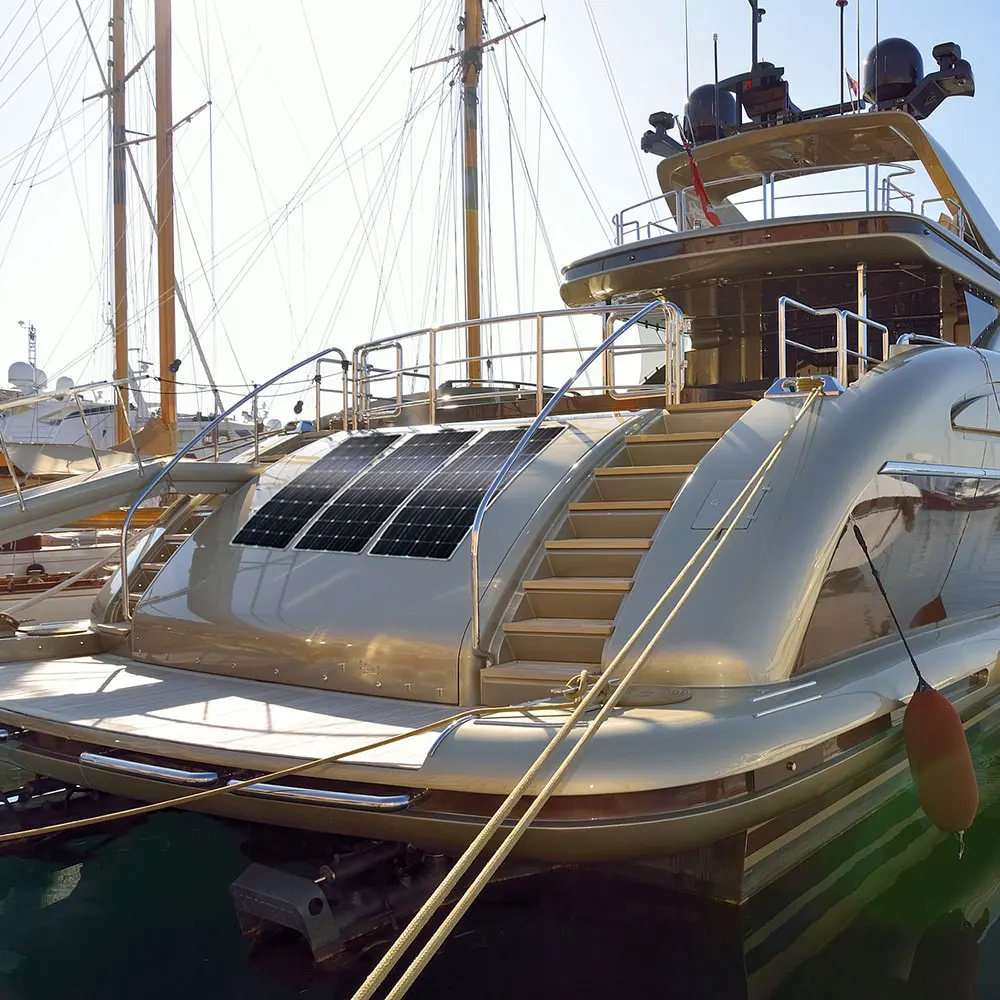

It is widely used to Boats/Sailboats, Yachts, Marine, Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Off-Grid and Remote Communication places.
