- Brand Name: xinpuguang
- Origin: CN(Origin)
- Foldable Solar Panel: No
- Number of Panels: 3
- Certification: CE
- Flexible Solar Panel: Yes
- Type: Solar Panel
- Size: 955*530*25mm
- Number of Cells: 36pcs
- Material: Monocrystalline Silicon
- Max. Power: 450w
Specification
Made of 166*166mm monocrystalline solar cell, 955*530*25mm, smaller size, higher power, save more space, suitable more place
Maximum power(Pmax) 150W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Cell efficiency 23%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 3.1kg

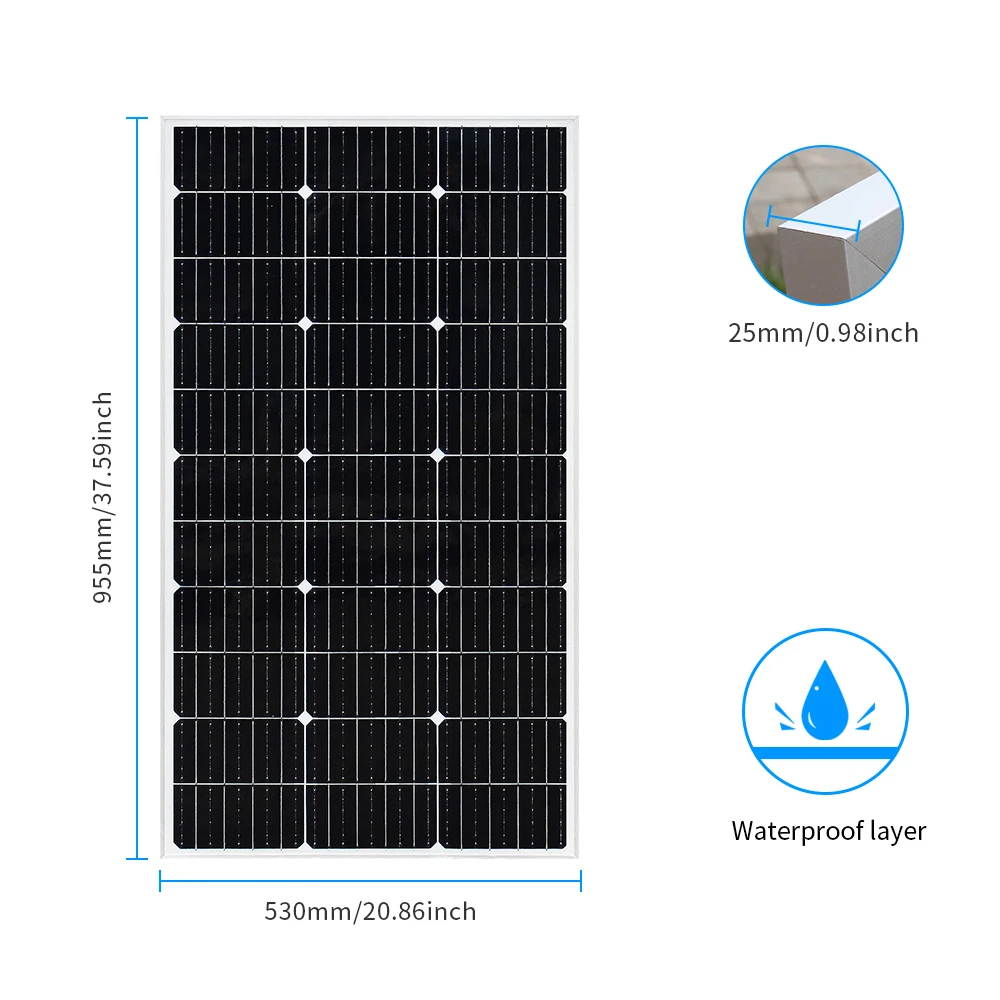

Size 955*530*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

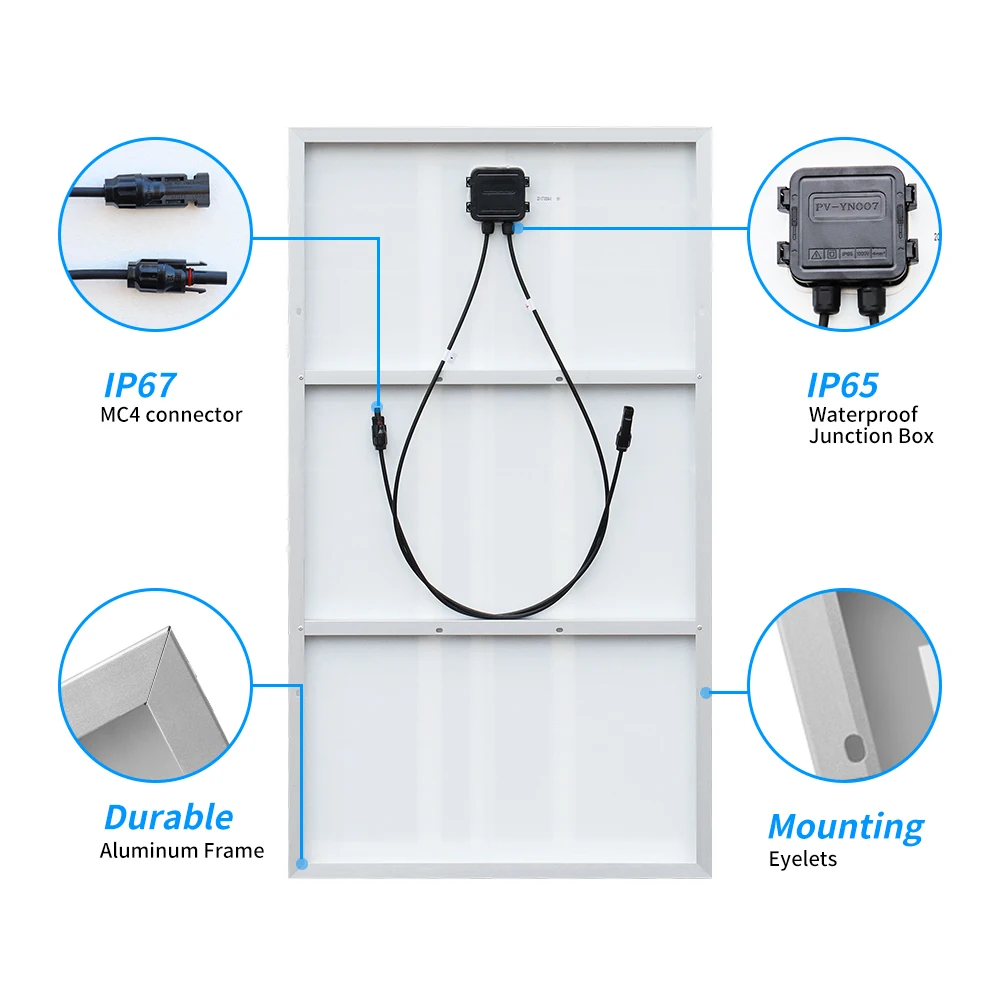

with Aluminum frame,easy to install on roof
*Reinforced with aluminum strip on the back,for Wind Resistance

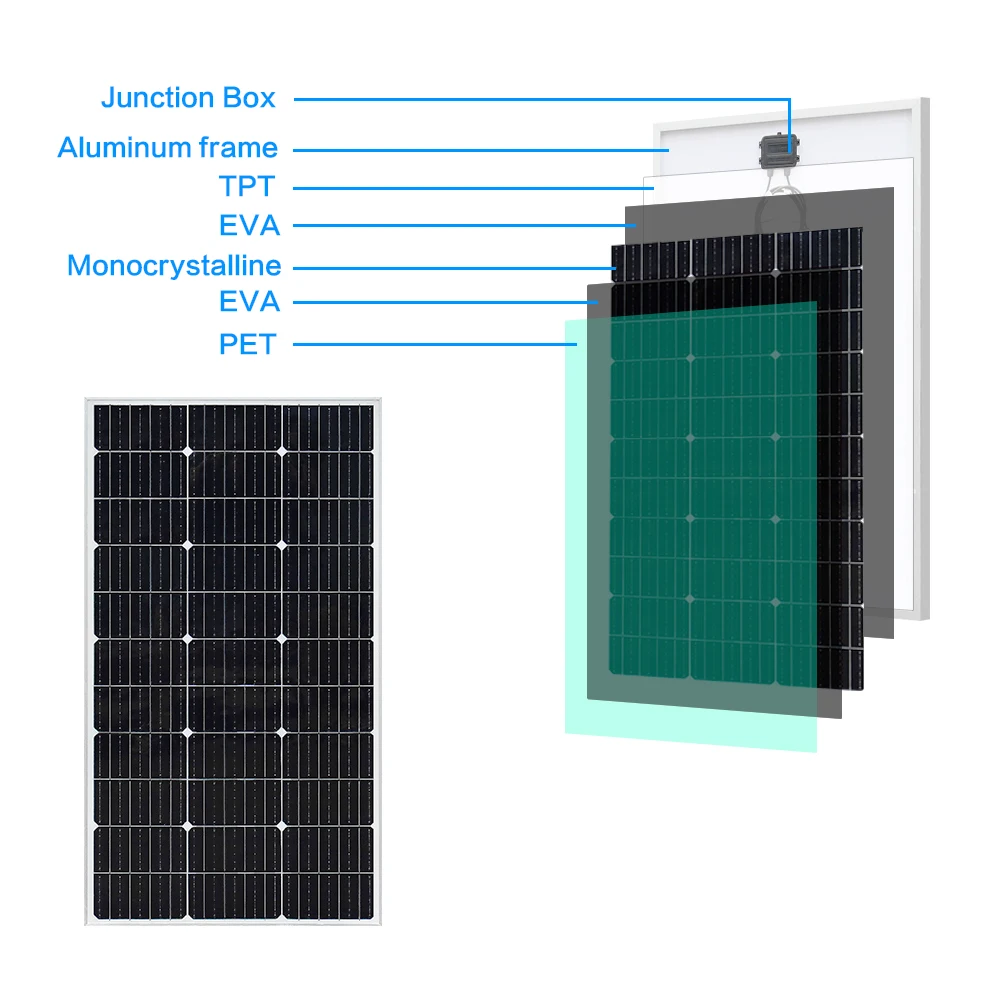

*TPT surface,waterproof
Suitable for car,RV,boat,camper.etc.
Connection
Connect controller with battery firstly,.then connect solar panel with controller
