- Brand Name: PowMr
- Origin: CN(Origin)
- Certification: CE
- Certification: FCC
- is_customized: Yes
- Output Current: 10.4~10.9A
- Output Frequency: 50Hz/60Hz
- Output Power: 1 – 200KW
- Output Type: Single
- Weight: 9KG
- Size: 10cm x 30cm x 44cm
- Is Smart Device: Yes
- Model Number: MPS-V-3200W-24V
- Rated Power: 3200VA/3200W
- Voltage: 230VAC
- Frequency Range: 50 Hz/60 Hz
- Surge Power: 6400VA
- Waveform: Pure sine wave
- Battery Voltage: 24VDC
- Maximum Charge Current: 80A
- Maximum PV Array Power: 4000W
- MPPT Range @ Operating Voltage: 120-450VDC

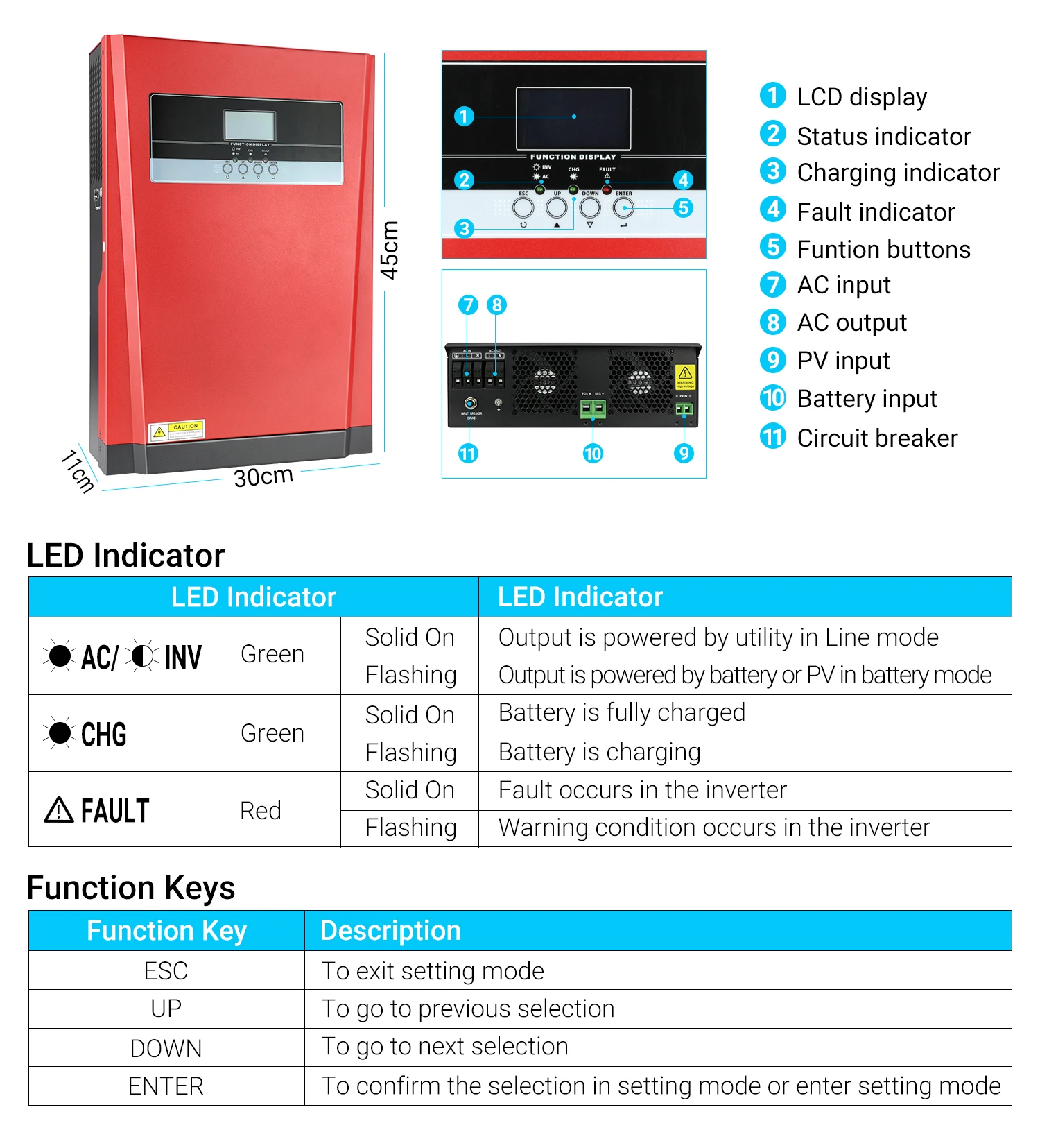

PowMr MPPT Solar Hybrid Inverter 3200W Pure Sine Wave 80A Charge Controller 24VDC To 230VAC All in One Max 4000W PV Input 500V
|
Battery Connection |
|||||||
|
Model |
Typical Amperage |
Battery Capacity |
Wire Size |
Ring Terminal |
Torque value |
||
|
Cable mm2 |
Dimensions |
||||||
|
D(mm) |
L（mm) |
||||||
|
3.2KW |
100A |
100AH |
1*4AWG |
35 |
6.4 |
33.2 |
2~3 Nm |
|
5KW |
200AH |
2*8AWG |
6.4 |
29.20 |
|||
|
AC Input/Output Connection |
|||||||
|
Model |
AC Breaker |
Gauge |
Torque value |
||||
|
3.2KW |
32A |
12 AWG |
1.2 Nm |
||||
|
5KW |
50A |
10 AWG |
|||||
|
PV Connection |
|||||||
|
Model |
Typical Amperage |
Gauge |
Torque value |
||||
|
3.2KVA |
50A |
8 AWG |
1.2Nm |
||||
|
5KVA |
|||||||
|
PV Module Selection (Take 250Wp PV Module as Sample） |
|||||||
|
Maximum Power(Pmax) |
250W |
Max.PV module numbers in series |
|||||
|
Max. Power Voltage Vmpp(V) |
30.1V |
Min：6:120V/31.1V |
|||||
|
Max：13:450V/31.1V |
|||||||
|
Max.Power Current Impp(A) |
8.3A |
PV module numbers in parallel |
|||||
|
Open Circuit Voltage Voc(V) |
37.7V |
9: 80A/8.42 (3.5KW) |
|||||
|
9: 80A/8.42 (5.5KW) |
|||||||
|
Short Circuit Current Isc(A) |
8.4A |
Total PV module numbers: |
20 |
||||
|
Maximum PV module numbers in Series :13 |
|||||||
|
PV module numbers in parallel :20 |
|||||||
|
Total PV module numbers :10Pcs in Serial and 2 set in parallel：20 |
|||||||
Battery Voltage:24Vdc (Not necessary， Generate power from PV directly to supply load ,even without battery)
AC Charger Input :230VAC 80A
Solar Charger Input:4000W 500V MPPT
Inverter:3200W Pure Sine Wave 230VAC 50Hz/60Hz

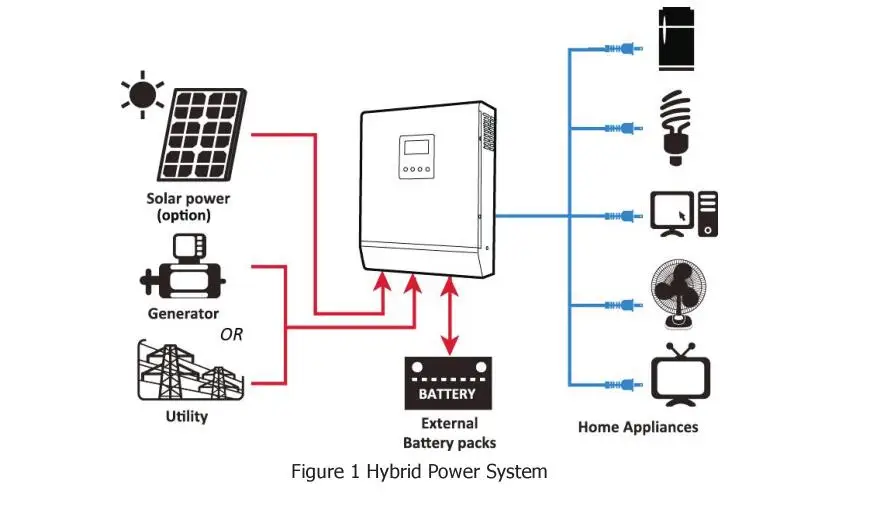

Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
FEATURE:
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
|
Model |
VM-3KVA |
VM-5KVA |
|
Rated Power |
3200VA/3.2KW |
5000VA/5000W |
|
INPUT |
||
|
Voltage |
230VAC |
|
|
Output Frequency |
50Hz |
|
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
|
AC Charging Current (Max) |
60Amp (@V I/P =230Vac) |
|
|
Max. PV Array Power |
4000W |
5000W |
|
Nominal PV Voltage |
240Vdc |
320Vdc |
|
PV Array MPPT Voltage Range |
120~450Vdc |
|
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
|
Max Charging Current |
80Amp |
|
|
PHYSICAL |
||
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
-10°C to 50°C |
|
|
Storage temperature |
-15°C~ 60°C |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
|
Dimension (D*W*H), mm |
100 x 300 x 440 |
|
|
