China Factory Selling Horizontal Start 1.3m/s New 800w 12v 24v Wind Turbine with 6 Blades and PWM charge controller for Home use

$256.20 – $305.04

Ships From
Voltage	12V24V
Specification	6 Blades
Color	Only TurbineWith MPPTWith PWM
Wattage	800W Clear

China Factory Selling Horizontal Start 1.3m/s New 800w 12v 24v Wind Turbine with 6 Blades and PWM charge controller for Home use

SKU: 4000380462725 Categories: Off-grid, Wind Turbine

Description
Reviews (0)

Brand Name: FLTXNY
Certification: CE
Origin: CN(Origin)
Model Number: SUN-800
is_customized: Yes
Type: Wind Power Generator
rated power: 800W
rated voltage: 12V 24V
Material: Alloy
Model Number: 6
Start up wind speed: 1.3m/s

Features

1.Low start up speed, 6 blades ,high wind energy utilization

2.Easy installation, tube or flange connection optional

3.Blades using new art of precision injection molding,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.

4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely

5.Patented permanent magnet ac generator with special stator,effectively reduce torque,well match the wind wheel and generator, and ensure the performance of whole system.

6.Controller,inverter can be matched accroding to customers’ specific needs

Specifications

Model	FN-800
Rated Power(w)	800w
Max Power(w)	850w
Rated Voltage(v)	12/24V
Blades length(mm)	580
Top net weight(kg)	10
Wind wheel diameter(m)	1.1
Rated wind speed(m/s)	13m/s
Start-up wind speed	1.3m/s
Survival wind speed	40m/s
generator	3 phase permanent magnet synchronous generator
Service Life	More Than 20 years
Bearing	HRB or for your order
Blades material	nylon
Shell Material	Alluminum alloy
Permanent Magnet Material	Rare Earth NdFeB
Control system	Electromagnet
Lubrication	Lubrication Grease
Working temperature	-40 to 80

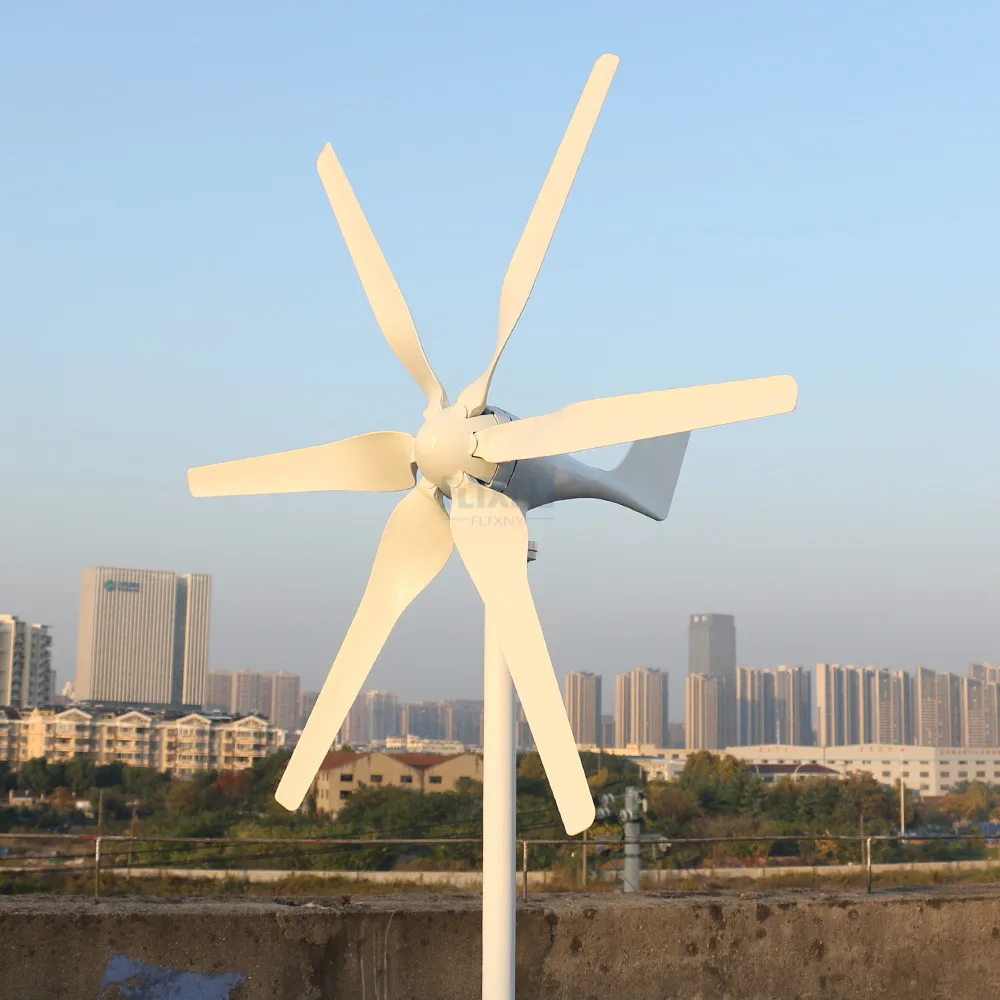

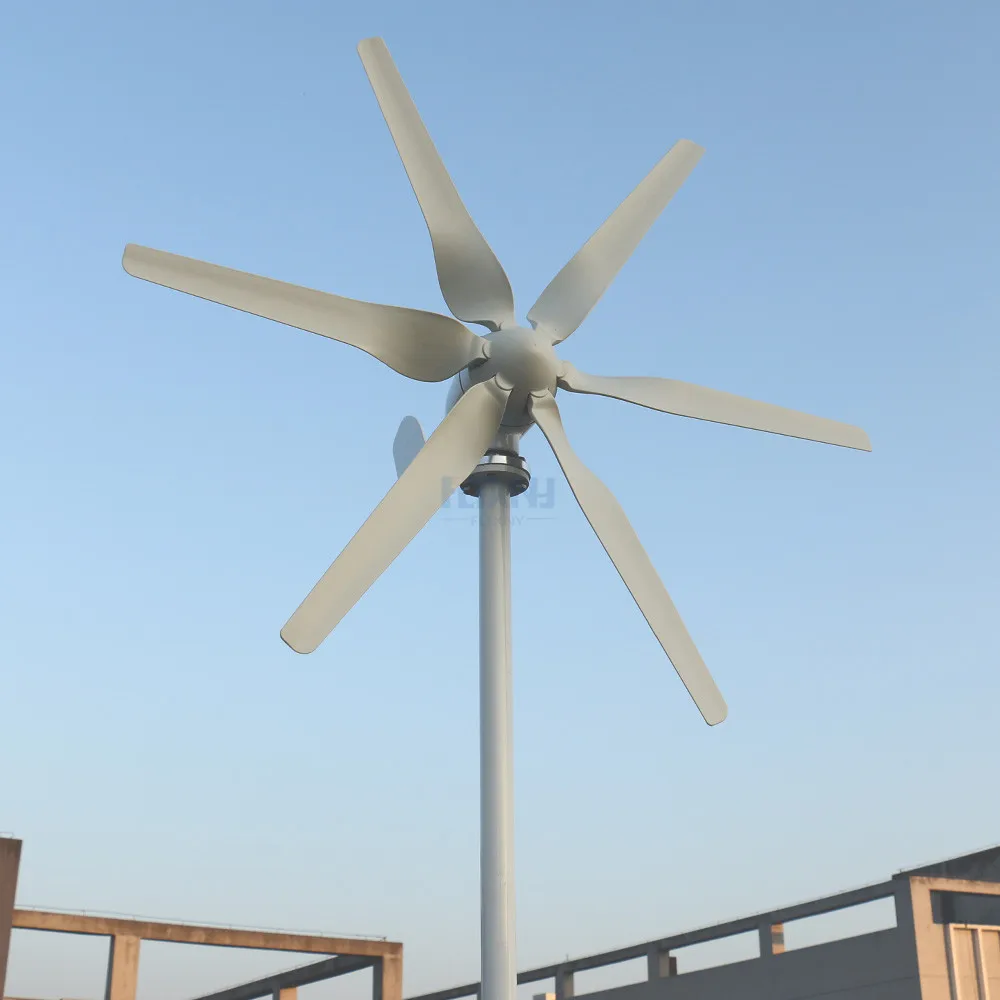

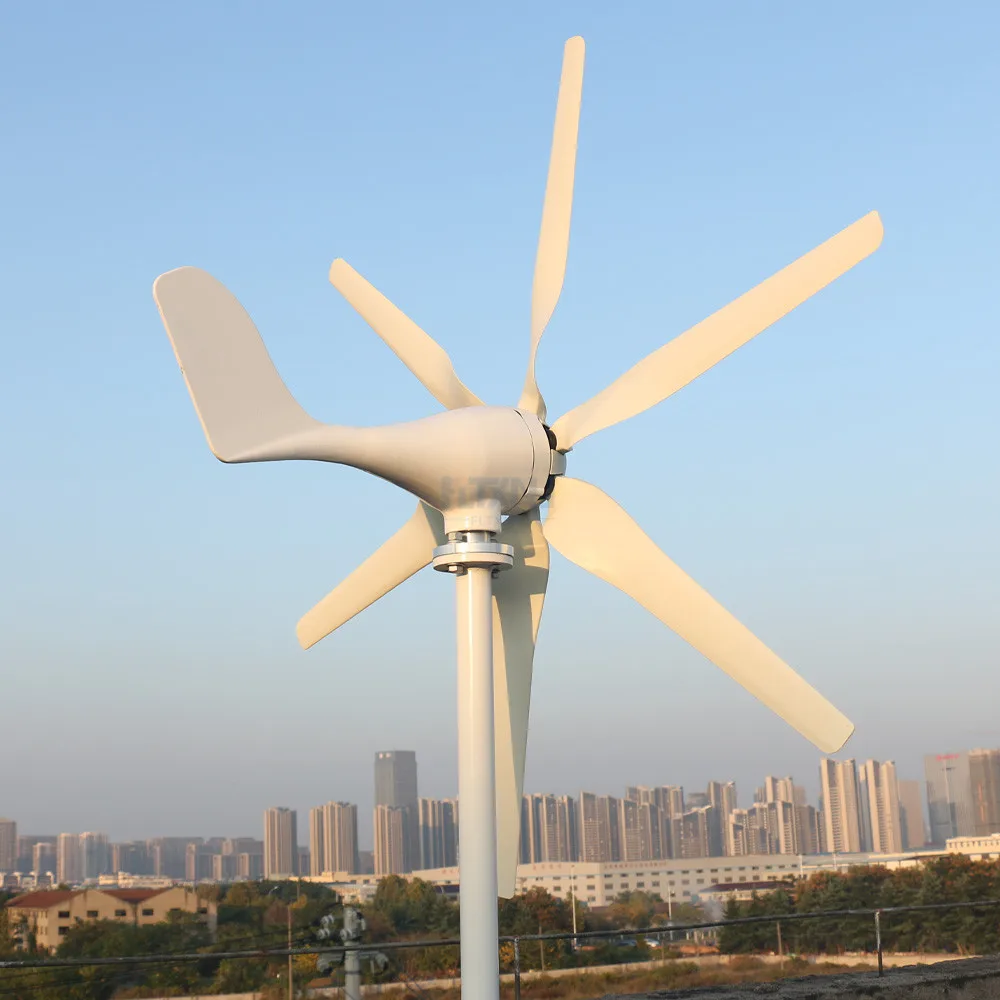

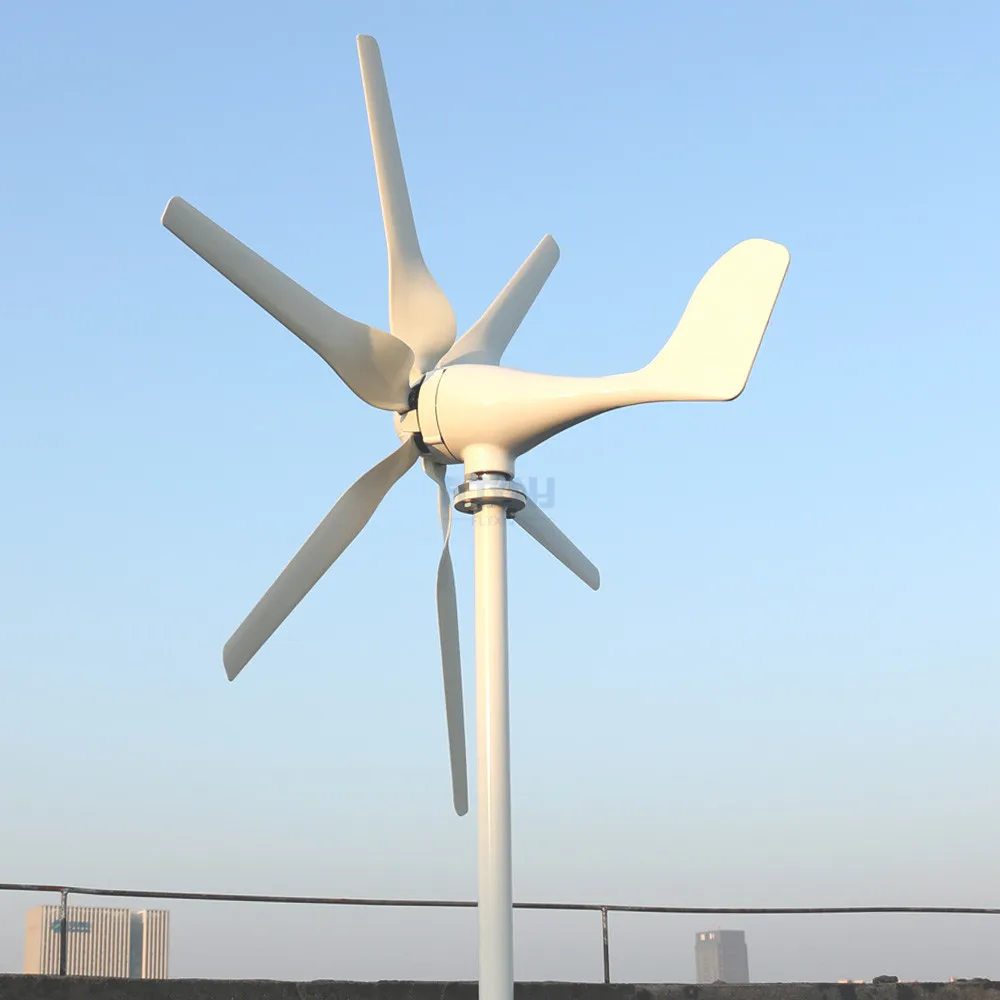

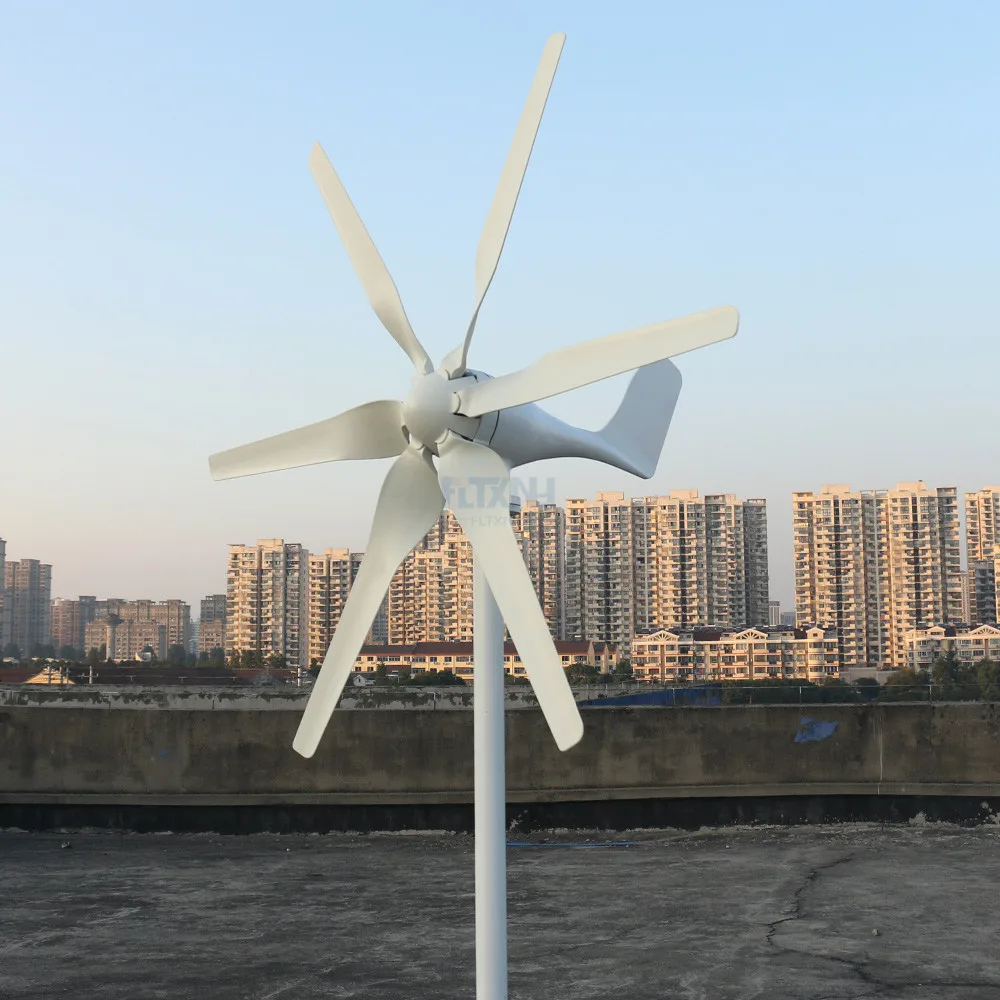

Photo Shows

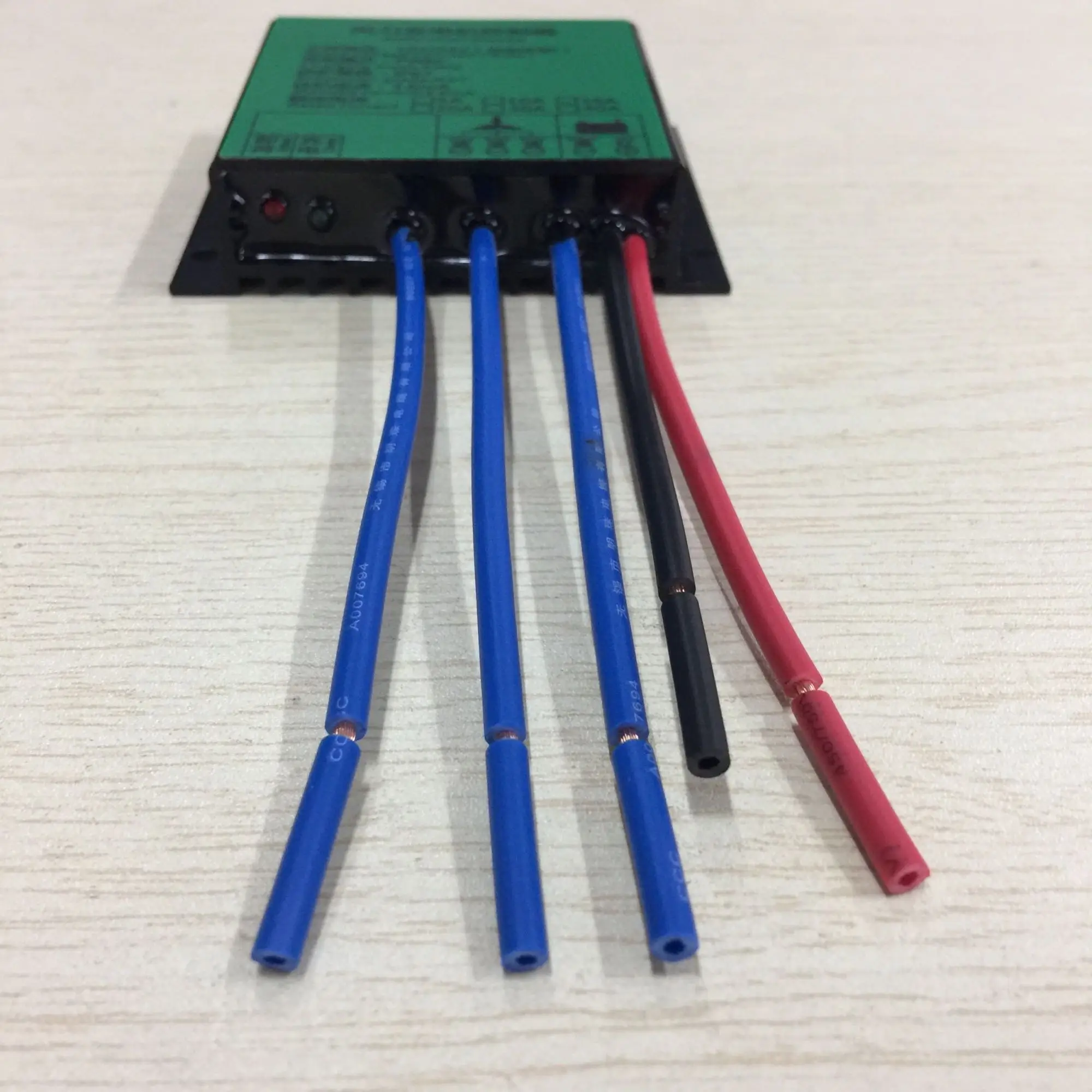

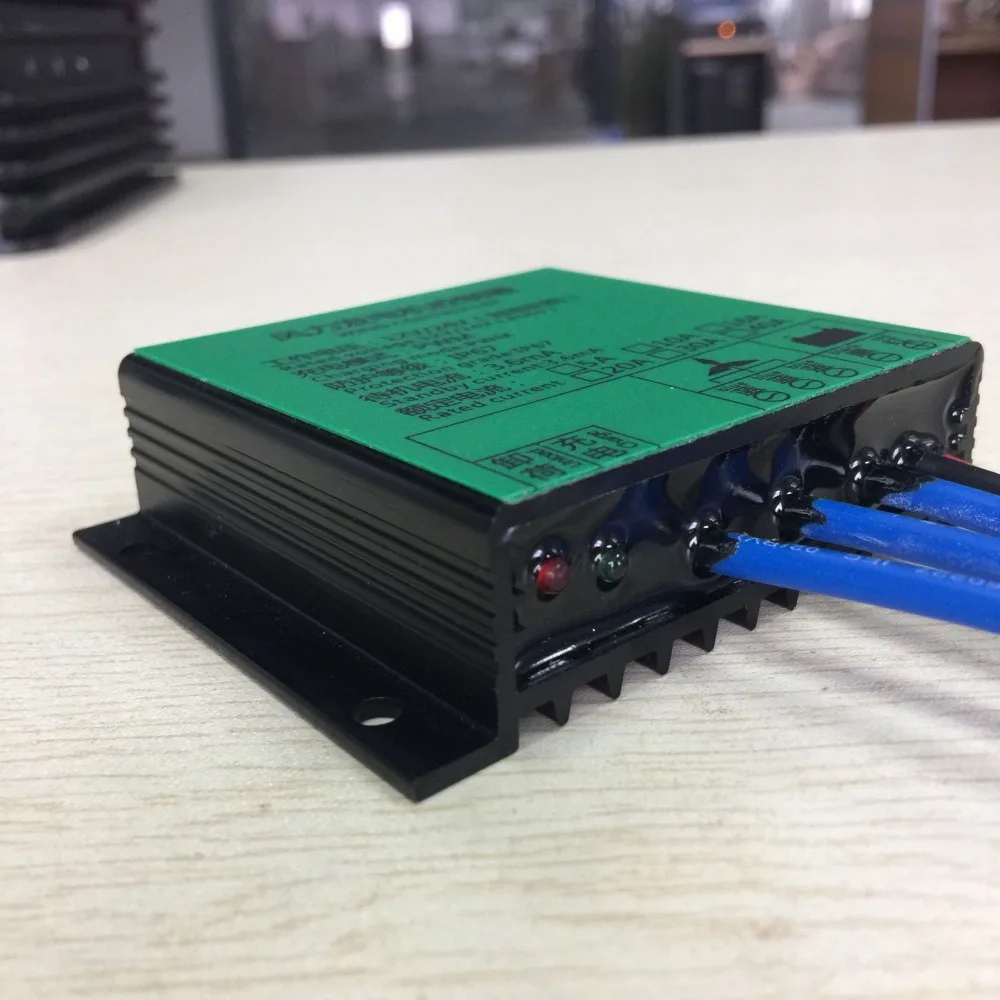

Controller

Warranty & Return

1.Refund or replacement request is available only the requests within 1 week after parcel received & returning the item as the same condition as received.

2.Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materils.

3.Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective.In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable.

4.If the item is found non-defective, the item will be sent back to the buyer at buyer’s expense.

Packing List

1. wind turbine 1 set(hub,tail,3 blades,generator,hood,bolts and nuts).

2.wind controller 1 piece.
