- Origin: CN(Origin)
- Certification: CE
- is_customized: Yes
- Output Current: 10.4~10.9A
- Output Frequency: 50Hz/60Hz
- Output Power: 201 – 400KW
- Output Type: Single
- Weight: 12KG
- Size: 55cm x 40cm x 22cm
- Is Smart Device: Yes
- Model Number: MPS-V plus 5KW
- Rated power: 5500va/5500w
- Input voltage: 230VAC
- Frequency range: 50hz/60hz (Anto sensing)
- Output AC voltage regulation: 230VAC
- surge power: 7000va
- battery voltage: 48VDC
- Maxiumum PV array power: 6000w
- MPPT range or operating voltage: 120-450VDC
- Max charge current: 80A
- Transfer time: 10ms for personal computer ; 20 ms for home appliances
- warranty: 2 years
5500W 48VDC 100A MPPT hybrid inverter rated power 5500va/5500w WITH WIFI Off Grid PV range: 120-500vdc 6000W w/o battery can work- 2 years warranty
Note:
This is a wide voltage hybrid inverter.
The Minimum Of MPPT Operating Voltage Should Be 150V To Make Sure That The Device Start Working,And 360V Is The Best.If You Have Any Problem,Please Contract US in Time,Thanks:)

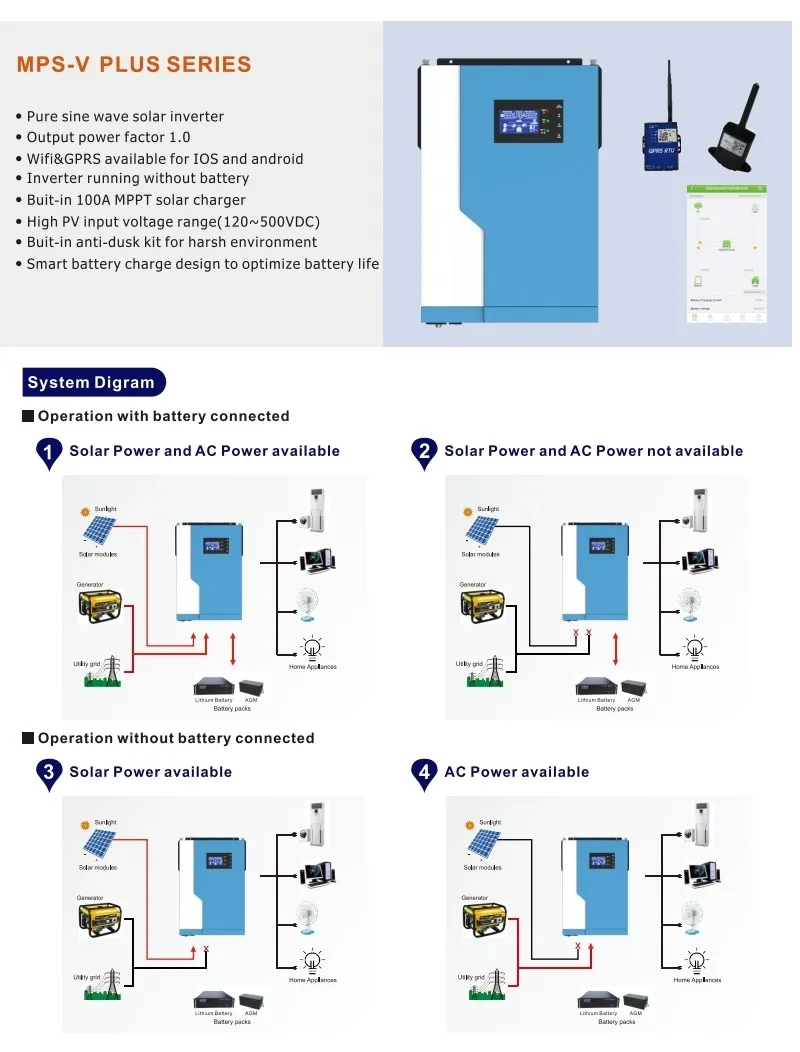

This is multi-function inverter/charger ,combining functions of inverter,MPPT solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications
Featurs:
-
Pure sine wave inverter
-
6.0 KW MPPT
-
Solar charger of the maximum charging current is 100A
-
120-500V wide PV input
-
Can used for Lithium battery /lead-acid battery/ Gel battery
-
Can work no battery
-
Generate power from PV directly to supply load, even without batteryPV to AC efficiency is much higher
-
-

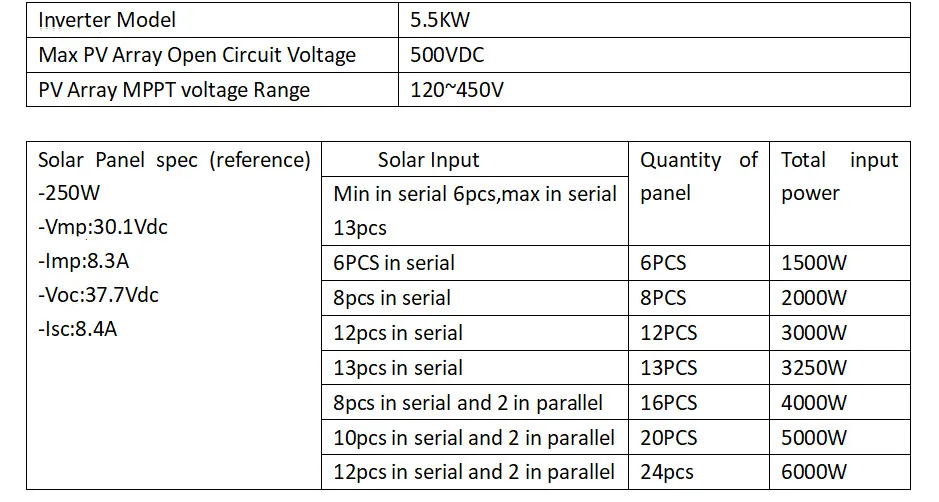

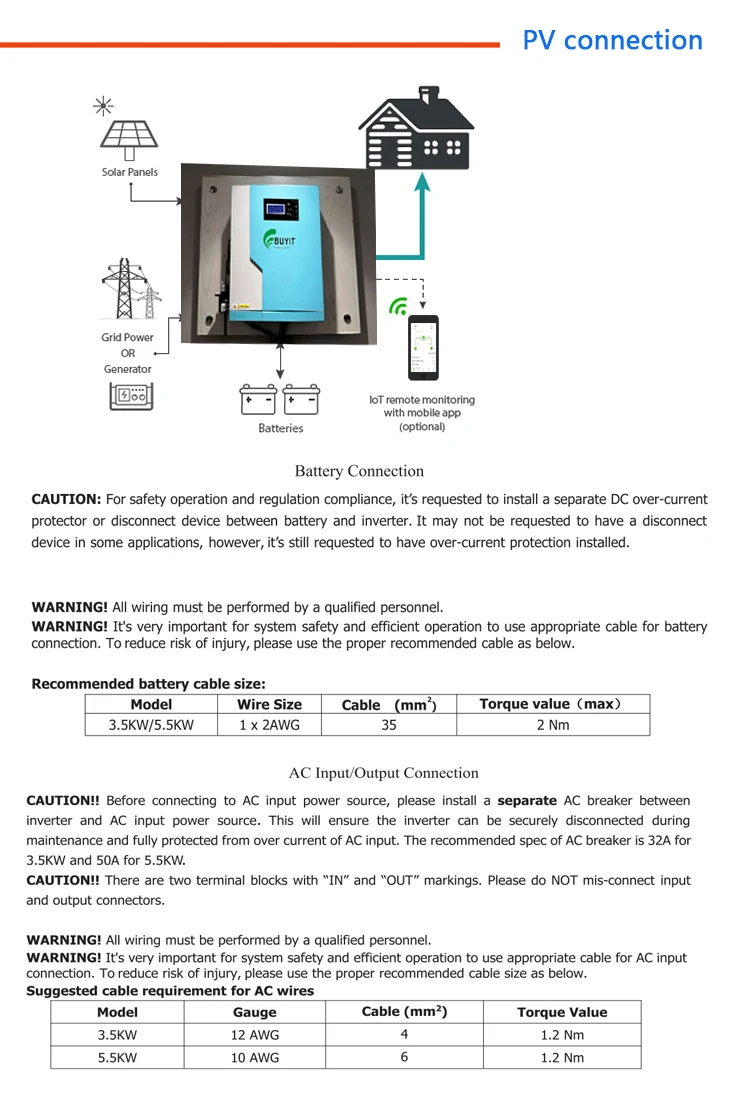

PV Module Selection:
When choosing proper PV modules,pls make sure consider below parameters: 1.Open circuit voltage(Voc) of PV modules not exceeds max.PV array open circuit circuit voltage of inverter. 2.Open circuit voltage(Voc) of PV modules should be higher than min.battery voltage

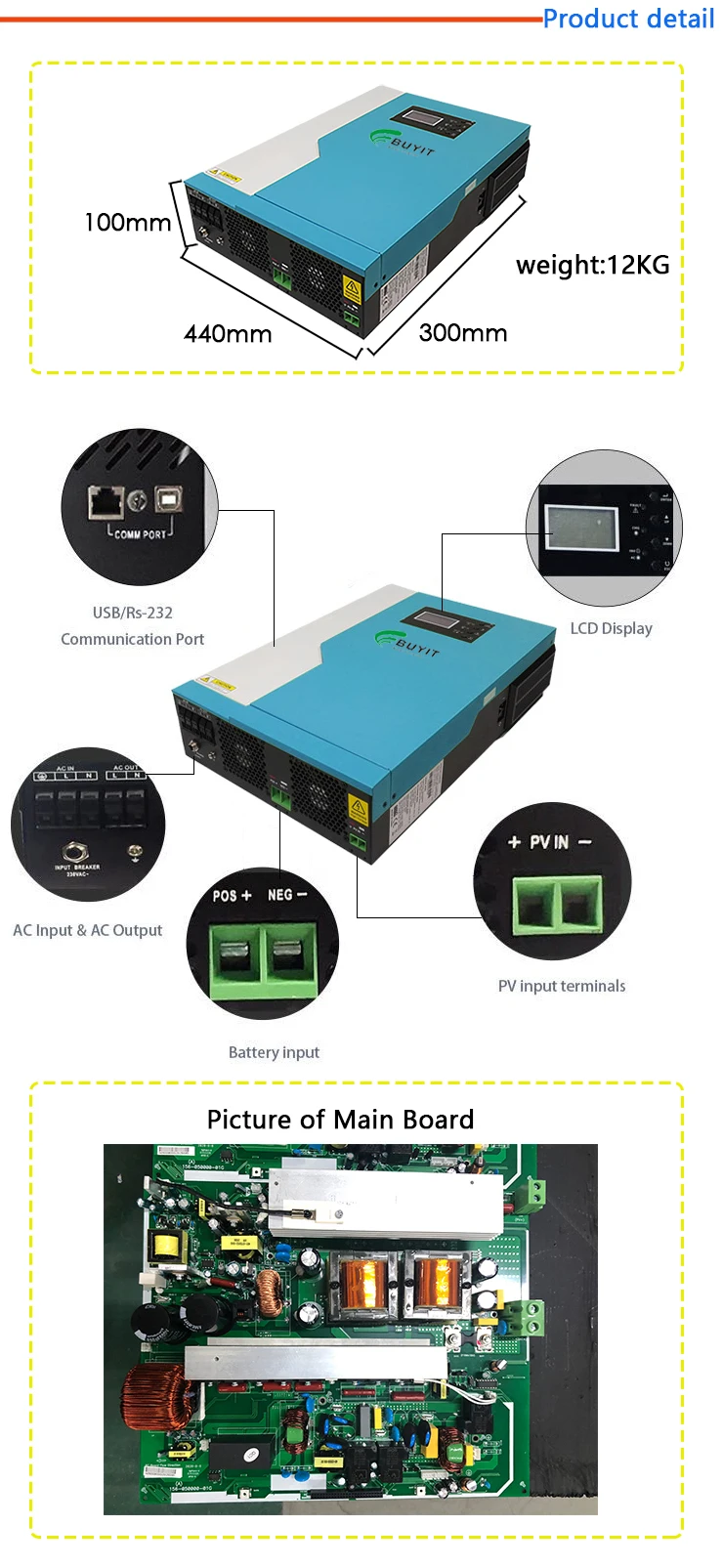

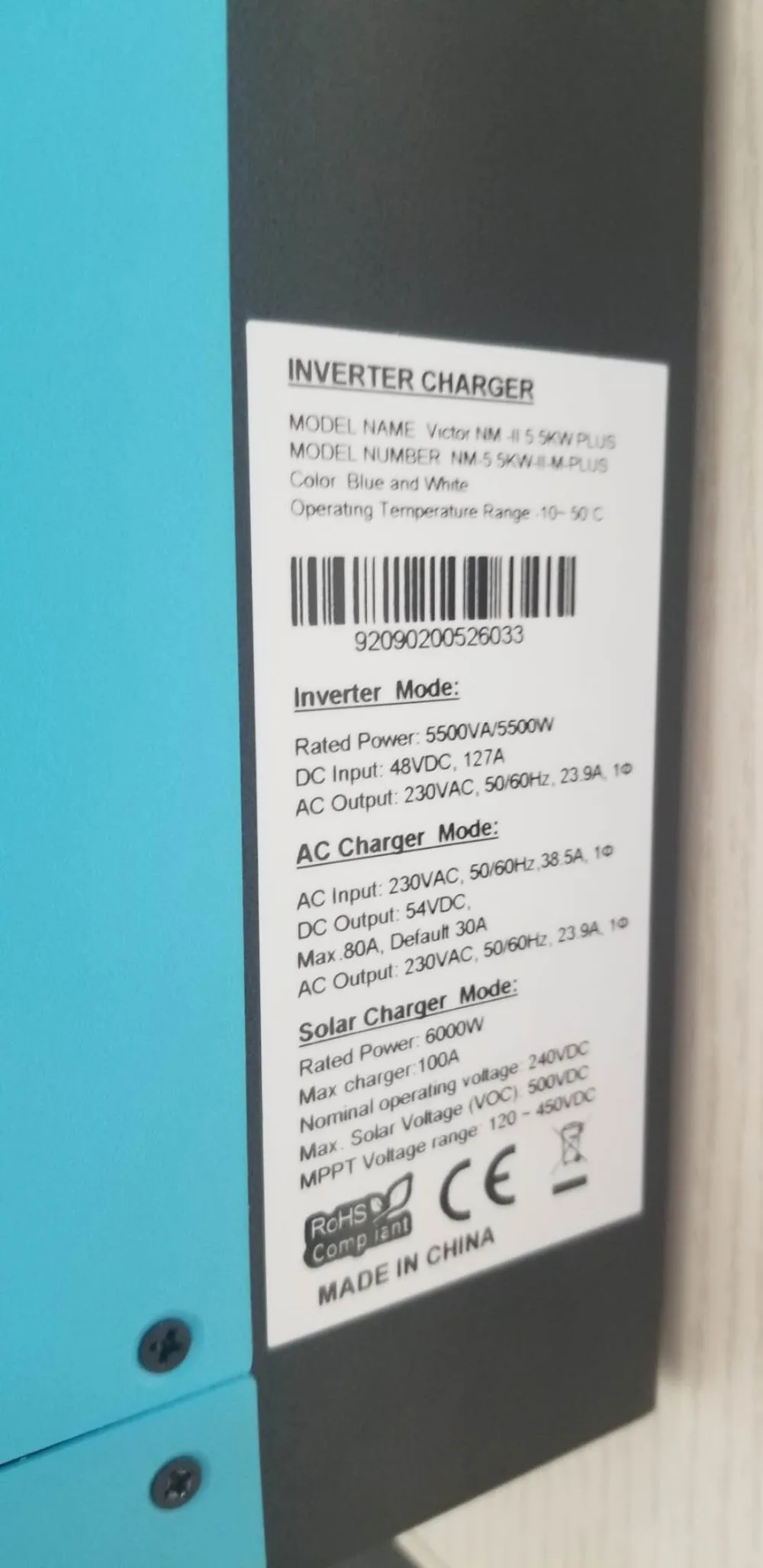

Product details picture:
A6:Can used for Lithium battery /lead-acid battery/ Gel battery
Q7: Many customers ask me why my PV is 120V, But inverter still not working?
A7：User manual write 120VDC-450VDC, But we suggest you use pv 180V-450V will working well because this inverter for high voltage.
※ Please noticed that Our selling price is not including custom duty. If you want to do low invoice, please tell us before send the goods.Thanks for your understanding.
