- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Zhejiang, China
- Brand Name: Maixi
- Model Number: PS1KVA
- Input Voltage: 90-280VAC or 170-280VAC
- Output Voltage: 220V/230/240VAC
- Output Current: 20A
- Output Frequency: 50/60Hz
- Output Type: Single
- Size: 305*300*110mm
- Type: DC/AC Inverters
- Inverter Efficiency: 93%
- Certificate: CE, CE ISO9001
- Weight: 6
- Product name: Solar Inverter
- Rated power: 1KVA/800W

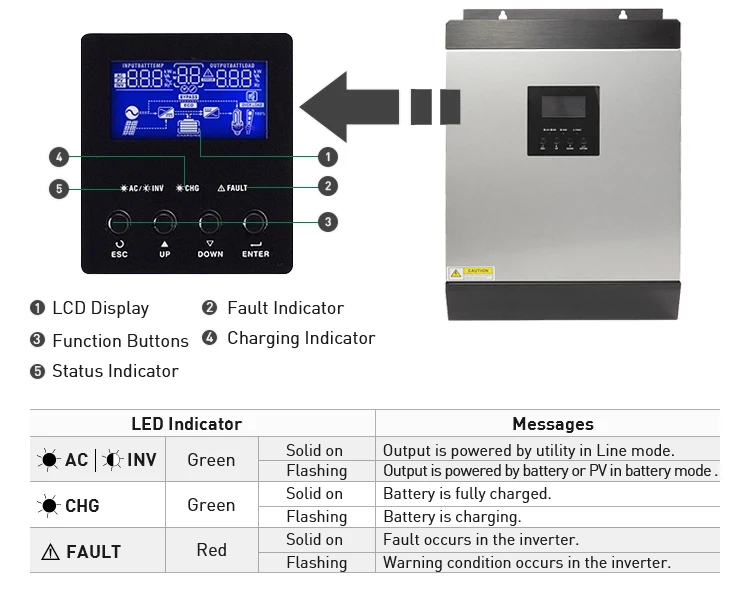

- Display: LCD Display
- Communication: RS232
- Application: Solar Power System Home
- Inverter type: Off-grid Solar Power Inverter
- Waveform: Puer Sine Wave Inverter
- Keyword: 1000W Inverter
- Warranty: 12 Months
Product Description
Manufacture Solar Inverter 12V 220VAC 1000w 1kva power Hybrid solar inverter
Product Details
Smart Monitoring System, solar power and ac power available.
Paramenters
|
Model
|
PS 1KVA
|
PS 3KVA
|
PS 5KVA
|
|||
|
Rated Power
|
1000VA/800W
|
3000VA/2400W
|
5000VA/4000W
|
|||
|
INPUT
|
|
|
|
|||
|
Voltage Range
|
170-280VAC(for personal computers)
90-280VAC(for home appliances)
|
|
|
|||
|
|
|
|
|
|||
|
Frequency Range
|
50Hz/60Hz(Auto sensing)
|
|
|
|||
|
OUTPUT
|
|
|
|
|||
|
AC Voltage Regulation
|
230VAC±5%
|
|
|
|||
|
Surge Power
|
2000VA
|
6000VA
|
10000VA
|
|||
|
Efficiency(peak)
|
90%
|
93%
|
|
|||
|
Transfer Time
|
10ms(personal computers)
20ms(for home appliances)
|
|
|
|||
|
Waveform
|
Pure Sine Wave Solar Inverter
|
|
|
|||
|
BATTERY & AC CHARGER
|
|
|
|
|||
|
Battery Voltage
|
12VDC
|
24VDC
|
48VDC
|
|||
|
Floating Charge Voltage
|
13.5VDC
|
27VDC
|
54VDC
|
|||
|
Overcharge Protection
|
15VDC
|
30VDC
|
60VDC
|
|||
|
Max Charge Current
|
10A or 20A
|
20A or 30A
|
10A/20A/30A/40A/50A/60A
|
|||
|
SOLAR CHARGER(OPTION)
|
|
|
|
|||
|
Charging Current
|
50A
|
|
|
|||
|
Max PV Array Open Circuit Voltage
|
40VDC
|
80VDC
|
105VDC
|
|||
|
PV Range
|
15-18VDC
|
30-32VDC
|
60-72VDC
|
|||
|
Standby Power Consum.
|
1W
|
2W
|
2W
|
|||
|
OPERATING ENVIRONMENT
|
|
|
|
|||
|
Humidity
|
5% to 95% relative humidity(non-considering)
|
|
|
|||
|
Operating Temp.
|
0℃-55℃
|
|
|
|||
|
Storage Temp.
|
-15℃-60℃
|
|
|
|||
Packing & Delivery
Custom-made foam
Carton+wooden pallet

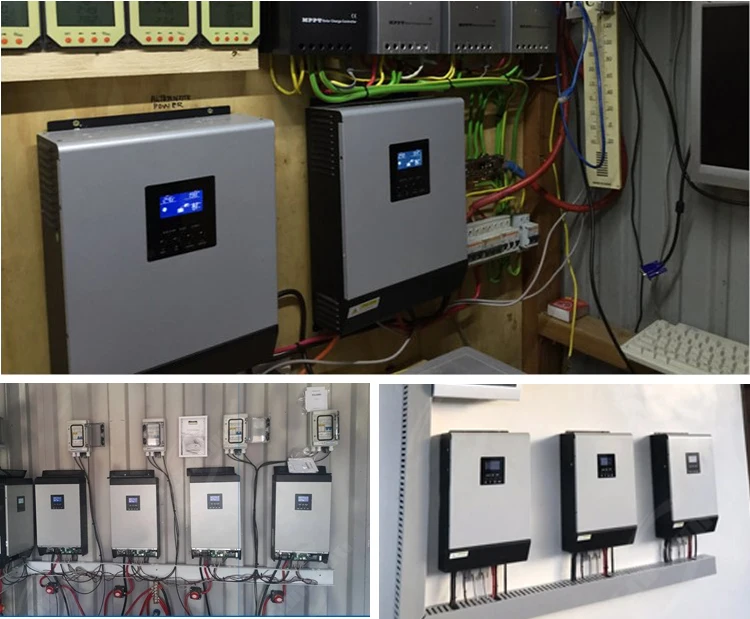

Application
Solar inverters widely for small PV plants, home appliances, PC computers, electric fan, FM radio and solar power system.

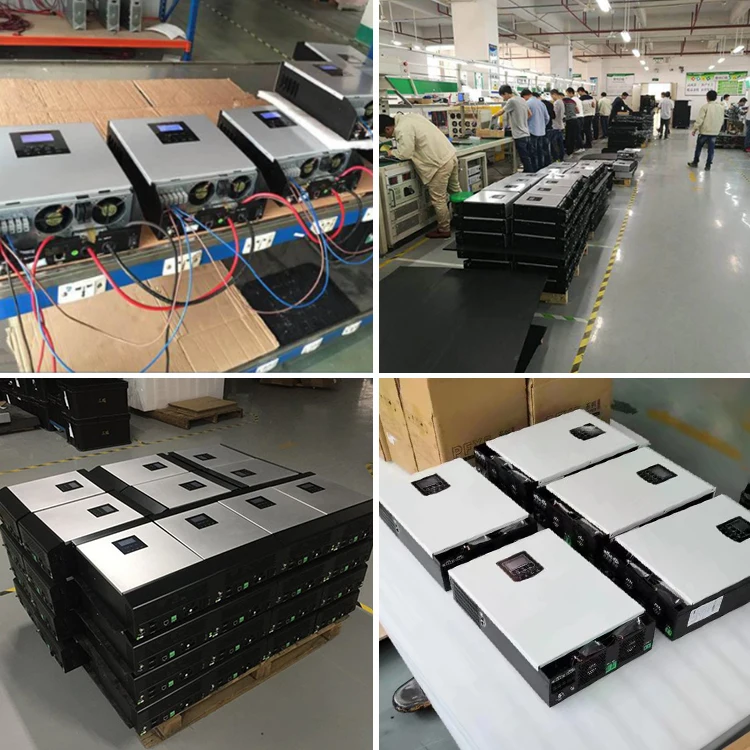

Factory Show
FAQ
Q: What is the solar inverter?

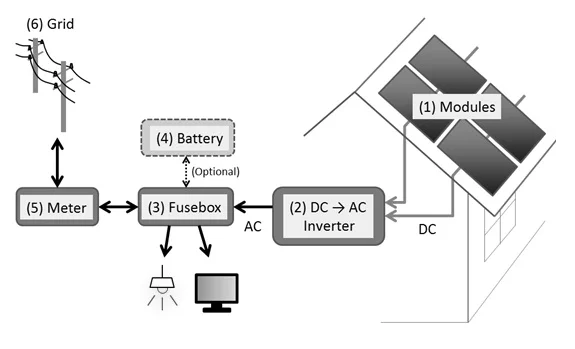

A: The solar inverter or PV inverter, is a type of electrical converter which converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network.
Q: How many kinds of solar inverters can be divided into?
A: Solar inverters may be classified into three broad types:Stand-alone inverters, Grid-tie inverters,Hybrid solar inverters.
Q: What’s hybrid solar inverters ?
A: Intelligent hybrid solar inverters, manage photovoltaic array, battery storage and utility grid, which are all coupled directly to the unit. These modern all-in-one systems are usually highly versatile and can be used for grid-tie, stand-alone or backup applications but their primary function is self-consumption with the use of storage. Q: What’s the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
